Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless

The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 milliseconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

Product Highlights:

• Zero Delay
• 6GHz Wireless Frequency
• Bolt 4K Cross-Compatibility
• Lightweight and Quiet
• Built in 5-pin USB for camera control
• Inputs: 12G-SDI, HDMI 2.0
• Outputs: 12G-SDI, HDMI 2.0

Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

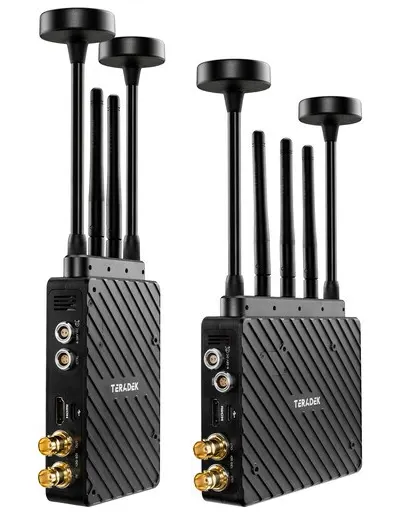

The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

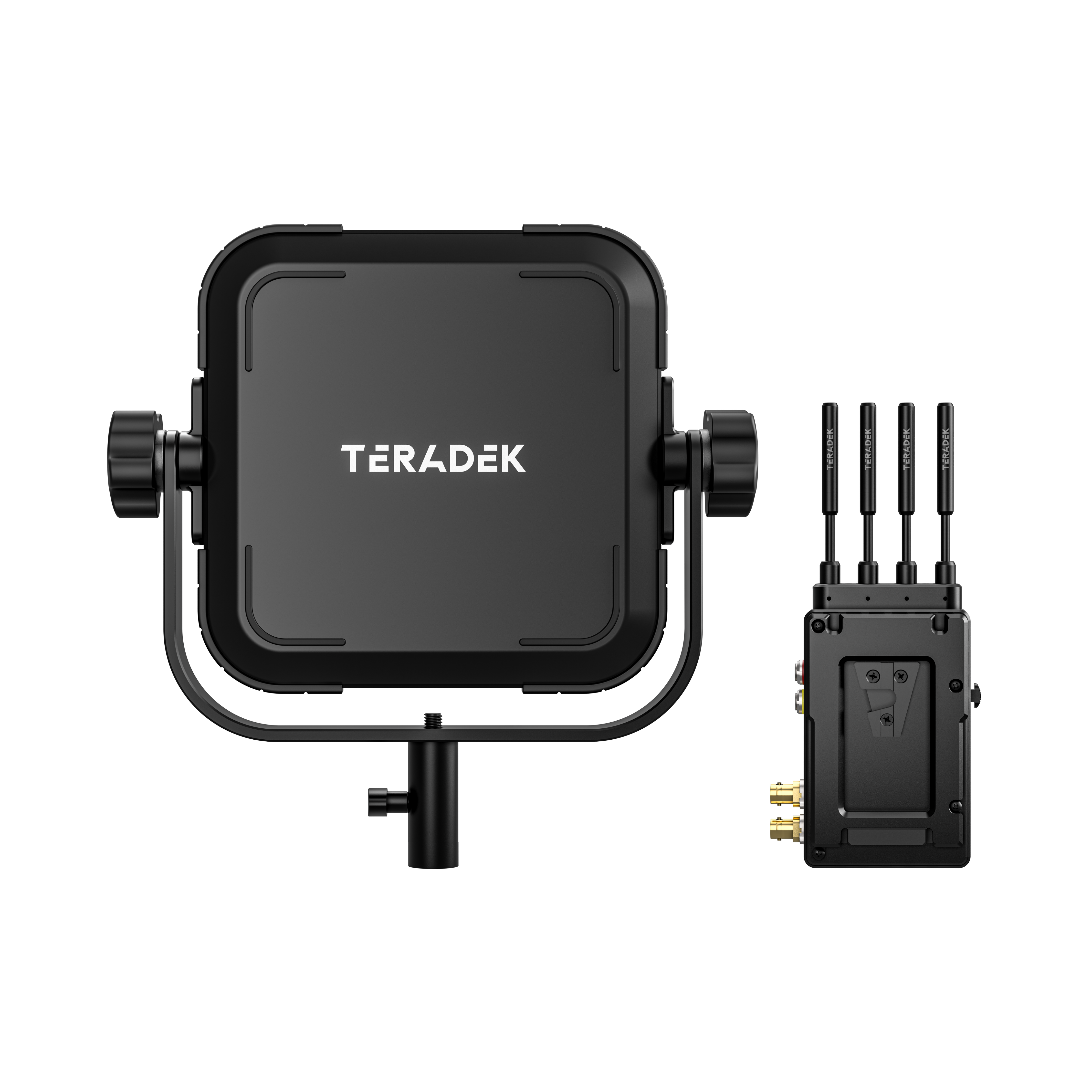

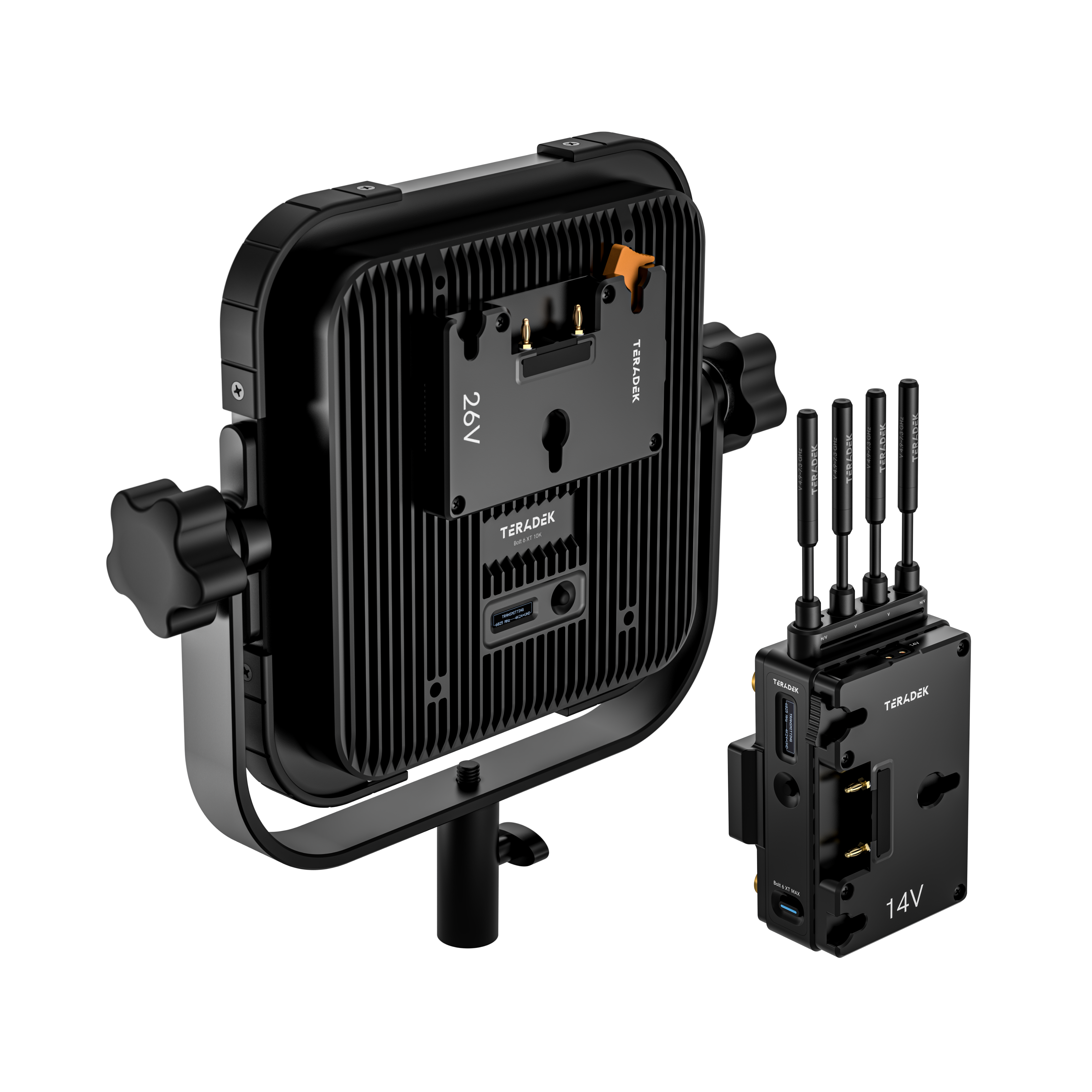

Bolt 6 XT MAX provides a 5000 ft line-of-sight capability. Transmitter and receiver are fitted with Gold mount plates.

Video Resolutions:
4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
