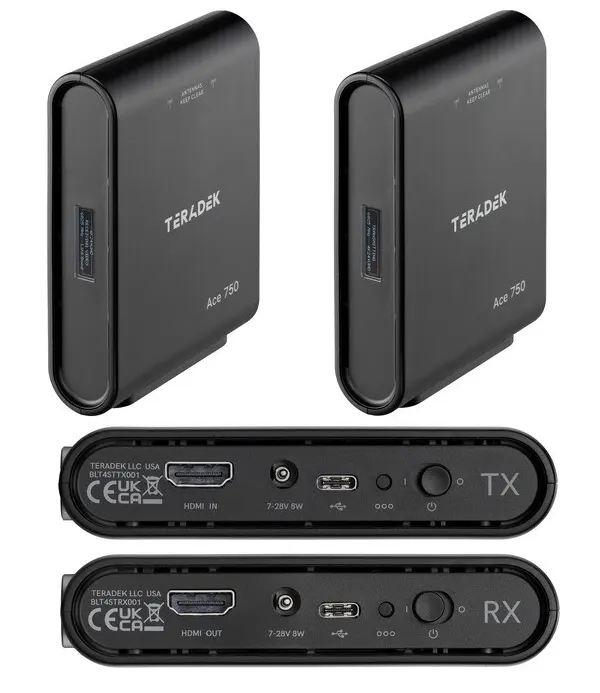

Teradek Ace 750 4K HDMI Wireless Video

Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines.

Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate. Ace 750 is built with the same reliable wireless technology found in their acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.

True Zero-Delay for All
Unlike WiFi-based systems, the patented Teradek BB3 silicon chip inside Ace 750 ensures wireless HDMI video transmission with less than 0.01 seconds of latency, sending true zero-delay video to up to six receivers up to 750 feet away.

AUTO CHANNEL SELECTION
Automatically connects to the clearest channel in your area for optimal signal strength.

APP CONTROL
Pair devices and manage settings with the Bolt Manager App for iOS and Android.

6GHz DIVERSITY
Get full 5GHz connectivity plus 12 newly available U-NII 5 channels (aka 6GHz) for more frequency options and the cleanest signal.

GOVERNMENT CERTIFIED
Teradek follows all frequency usage and power output guidelines to ensure full FCC and CE compliance.

The System That Evolves With You
Compatible with all Teradek Bolt 4K and Bolt 6 Series Wireless Systems, Ace 750 lets you scale to any production environment.

Video Formats:
HDMI (10-Bit 4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94



ACE 750 Spec Sheet
