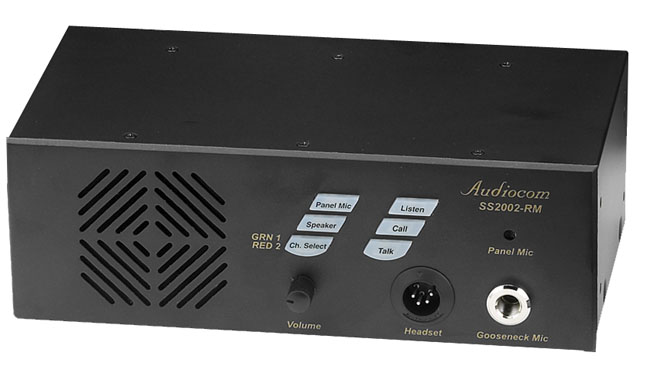

Telex SS-2002RM
Dual-Channel Rackmount Speaker Station

Panel Mic Key
Selects built-in panel microphone or gooseneck microphone (when present) when in the ON position. Selects headset/handset when in the OFF position.

Speaker Key
Selects the built-in speaker in the ON position and the headset/ handset when in the OFF position.

Channel Select Switch
Used to switch between intercom channels one and two. The switch lights green for channel one and red for channel two.

Call Key
Used to send call signals on the intercom channel and to indicate incoming calls.

Intercom Talk Key
Only momentary (push-to-talk) is possible.

Panel Mic Connector

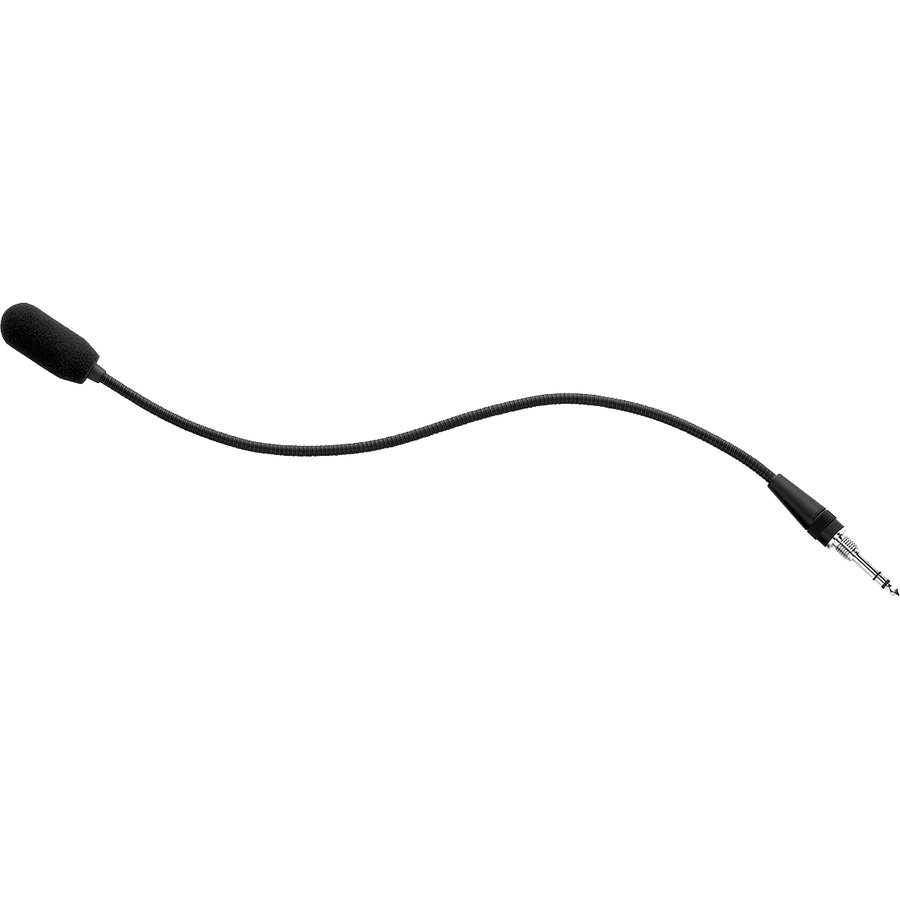

Accepts an MCP-90 series microphone.

Clear-Com Compatible
