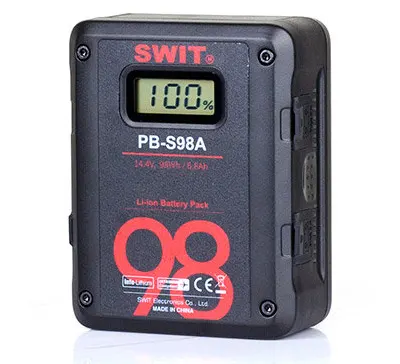

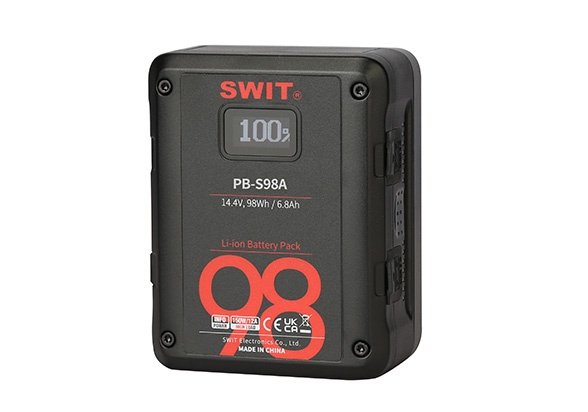

SWIT PB-S98A
98Wh Gold Mount Battery

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal Gold-mount batteries, and match perfectly with most Cine-cameras. Of course the battery will also fit fine on standard ENG cameras.

98Wh Capacity, 150W/12A load
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. Can run approx 3 hours for normal ENG cameras.

Provides at least 150W/12A high load even at 1% capacity.

Multiple output sockets design

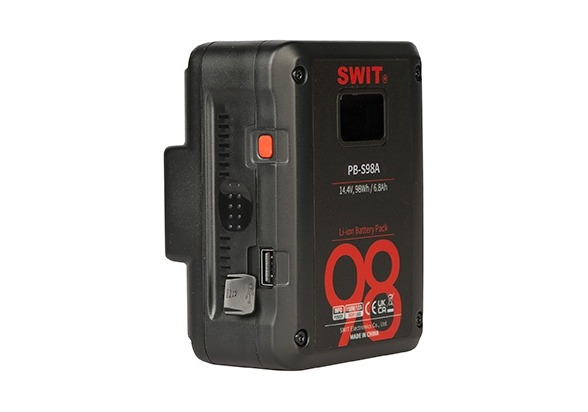

2× D-tap output sockets, 1× USB 5V/2A power output socket

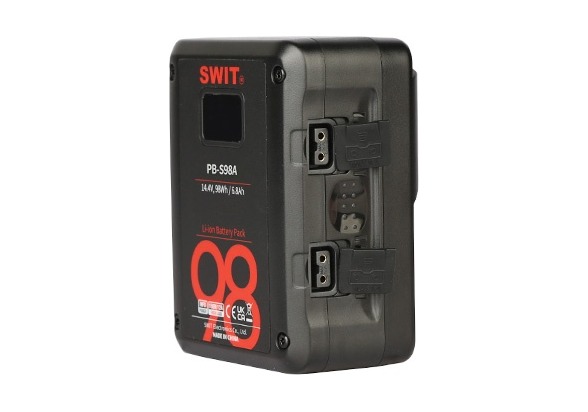

PB-S98A is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 10A/120W. PB-S98A is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.

Digital Power Info
LCD display accurate remaining run time The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

FEATURES:

• Square shape design for Cine-cameras
• Max 150W, 12A load
• 2× D-tap output sockets
• 1× USB 5V/2A power output sockets
• LCD display accurate remaining run time
• Display power info in both SONY & RED
• Multiple circuit protections

SPECS:

• Voltage 14.4V
• Capacity 98Wh
• Max Output Power 150W
• Max Output Current 12A
• Over Current Protection 10A
• Mount Type Gold-mount
• Operation temperature 0- 40°c
• Net Weight Approx 0.8kg
• Dimension 121x95x59mm
