Shure MX Series
Wired Lavalier Microphones

They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job. Each Microflex Lavalier includes all the accessories you need:

• Pivoting, Single-Microphone Tie Clip
• Dual Microphone Tie Clip
• Black, Snap-fit Foam Windscreen
• Belt-Clip Preamp
• 4-foot cable with 4-pin mini connector

The Microflex Lavaliers are completely compatible with all Shure Wireless transmitters, and their high sensitivity and wide frequency response guarantee great sound with a minimum of RF interference or electromagnetic hum. Plus, each Microflex Lavalier features the same Shure quality sound that has become an industry standard. But don't take our word for it. Just listen, and you'll hear how the best solution just got better.

FEATURES:

• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
• Interchangeable cartridges that provide an optimal choice for each application
• Rotatable tie-clip that pivots in 90 increments for placement flexibility
• Supplied snap-fit foam windscreen that controls breath noise and stays on securely
• Balanced, transformerless output for increased immunity to noise over long cable runs
• Supplied dual tie clip holds two microphones for dual miking applications

SPECIFICATIONS

• Type: Condenser (electret bias)
• Frequency Response: 50 to 17,000 Hz

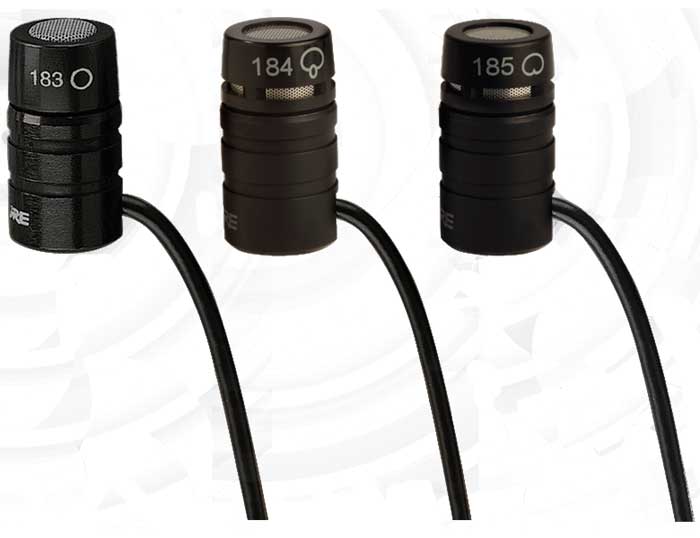

• Polar Pattern:
  MX183: Omnidirectional
  MX184: Supercardioid
  MX185: Cardioid
• Output Impedance: EIA rated at 150 ohms (180 ohms actual)
• Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*):
  MX183: -27.5 dB (42.2 mV)
  MX184: -33.5 dB (21.1 mV)
  MX185: -35.0 dB (17.0 mV)
  *1 Pascal = 94 dB SPL
• Max SPL (1kHz at 1%THD, 1 k ohms load):
  MX183: 116.7 dB
  MX184: 122.7 dB
  MX185: 124.2 dB
• Equivalent Output Noise (A-weighted):
  MX183: 20.5 dB
  MX184: 26.5 dB
  MX185: 28.0 dB
• Signal to Noise Ratio (referenced at 94 dB SPL):
  MX183: 73.5 dB
  MX184: 67.5 dB
  MX185: 66.0 dB
• Dynamic Range at 1 k ohms load: 96.2 dB
• Power Requirements: 11 to 52 Vdc phantom, 2.0 mA
