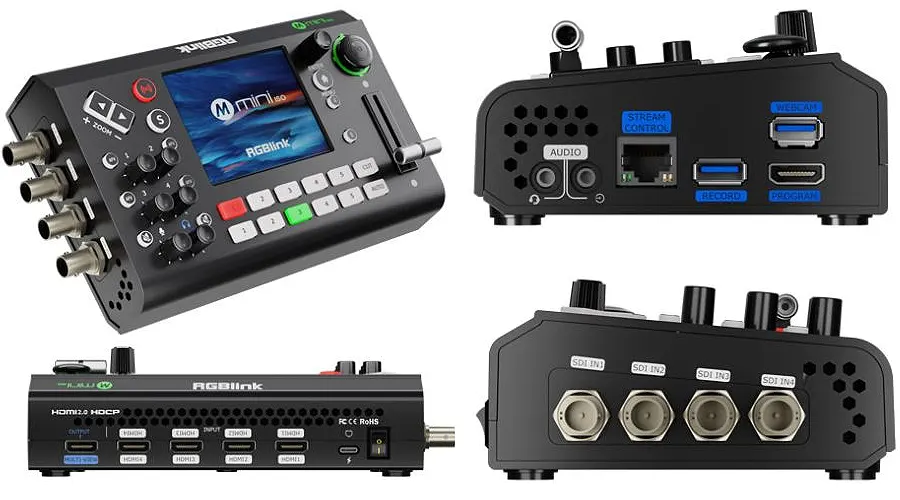

RGBlink mini-ISO 10-Channel All-in-One Switcher

RGBlink’s mini-ISO switcher features four 4K HDMI inputs and four SDI inputs, supporting signals from PC, Laptop, camera and more. Both Line and Mic level audio supported with variable delay controls to bring audio into sync if needed. Dual HDMI outputs support for monitoring of multi-view Preview, Program or Test Pattern. One USB output supports YUY2 and MJPEG encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc.
The mini-ISO is built with 3.5-inch TFT touch screen for menu operation and video sources display. mini-ISO is packed with features including dynamic output control, multi-view preview, picture in picture, chroma key, luma key, transitions, on board PTZ camera controls and much more.
The mini-ISO supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(S).

Features

• Small size makes it ideal for quick setups in schools, location shoots, etc.
• Quad SDI inputs supports signal from PC, camera,etc
• Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60
• 5-inch touch screen for menu operation, signal preview and working status display
• Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or Test Pattern
• Mix for 4-channel HDMI/SDI embedded and 2-channel external audio
• USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
• USB output supports YUY2/MJPEG format, which can be recognized as webcam for streaming
• AUTO and WIPE Switch mode available
• 15 transition effects
• 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
• TAO Cloud control, compatible with mobile devices and desktop
• Support RTMP(S) network streaming up to 4 platforms
• Specify either “green” or “blue” as the key color for Chroma Key
• Support Luma Key
• Save and load PTZ presets. One-click for preset recall.

mini-ISO Spec Sheet
