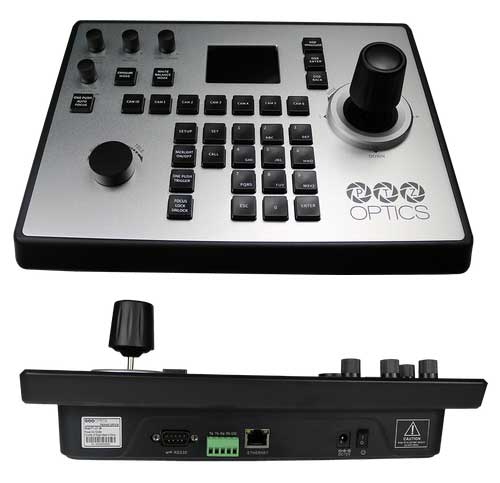

PTZOptics PT-JOY-G4 Joystick Controller

Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.

For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller

The unit comes with a 12V 2A DC International Power Supply and an 8-foot RS-232C cable.

Features

• Durable metal housing
• VISCA over IP & Serial control
• PTZOptics Camera On Screen Display
• control
• Full Pan / Tilt / Zoom camera control
• P/T/Z Speed adjustment on the fly
• Direct exposure & white balance control
• 255 total cameras via network
• 255 camera presets, 9 Quick presets
• Fine tune zoom control knob
• Fine tune focus control knob
• PTZOptics Focus lock & unlock
• Large LCD screen with controller status
• Import / Export settings via network
• 2-Year warranty

Technical Specifications

• Connections: RS-232, RS-485, RS-422, RJ-45
• Max Cameras:
• 255 cameras via network
• 7 cameras via serial VISCA
• Recommended Max Distance:
• RS-232 / RS-422: 50 ft (15m)
• RS-485: 3,937 ft (1200m)
• Ethernet: 328 ft (100m)
• Baud rate: 1200 ~ 19200 bps

Operation Specifications

• Power: 6W (12VDC) / PoE (802.3af)
• Working Temp: 14° F ~ 122° F (-10° C ~ +50° C)
• Working Humidity: 10% ~ 90% (non-condensation)
• Weight: 4.45 lbs (2.02 kg)
• Dimensions (in.): 11.938 W x 9.25 D x 4.25 H
• Dimensions (mm.): 303.23 W x 234.95 D x 107.95 H
