Panasonic WX-SR202DN/WX-SR204DN
Dante^® Digital Wireless Receivers

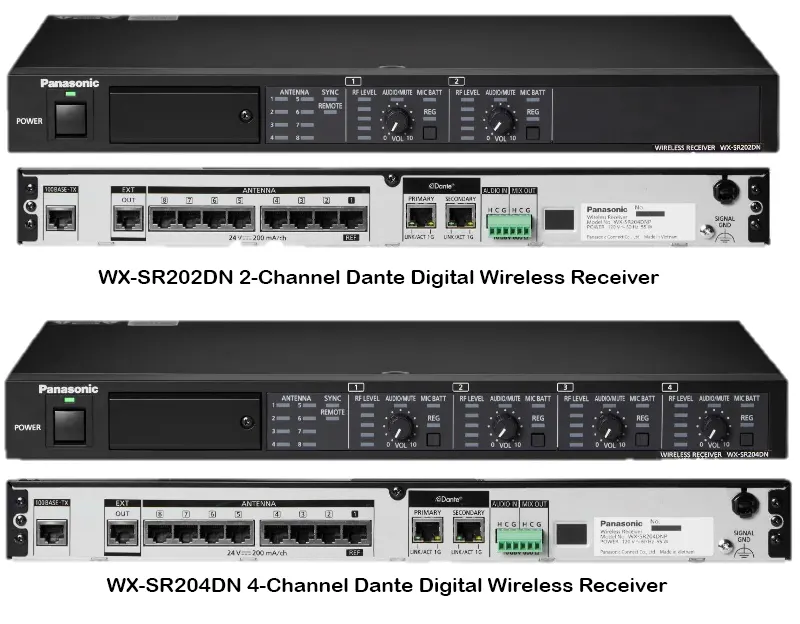

WX-SR202DN Dante^® 2-channel Receiver
The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR202DN digital wireless receiver supports two wireless microphone channels (choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks). Perfect for classrooms, conference rooms, auditoriums, museums, retail and bars / restaurants, the WX- SR202DN features RJ45 (CAT5 / CAT5e / CAT6) connections for 2 Dante connections (primary and secondary), for up to eight (8) external antennas (WX-SA250) and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, or QSC’s Q-Sys. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Also includes Europlug connectors for an external audio input and a mix output. Multiple WX-SR202’s can be installed to support up to 8 microphone channels in a single room. Ships with rack ears for easy rack mount installation.

WX-SR204DN Dante^® 4-channel Receiver
The 4 channel version of the WX-SR202DN, it also adds an RJ45 connection for an optional expansion receiver.

WX-SE200DN 4-channel Expansion Unit
Designed to be used with Panasonic’s WX-SR204DN 4-channel wireless mic receivers, the WX-SE200DN Dante expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*. (Depending on room size and mic placement.)

Choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, retail, and bars / restaurants, the WX-SE200DN features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204DN 4-channel wireless receivers, and Dante primary and secondary connections for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.


WX-SR202DN Spec Sheet
WX-SR204DN Spec Sheet
WX-SE200DN Spec Sheet
