Panasonic WX-SR202/WX-SR204 Digital Wireless Receivers

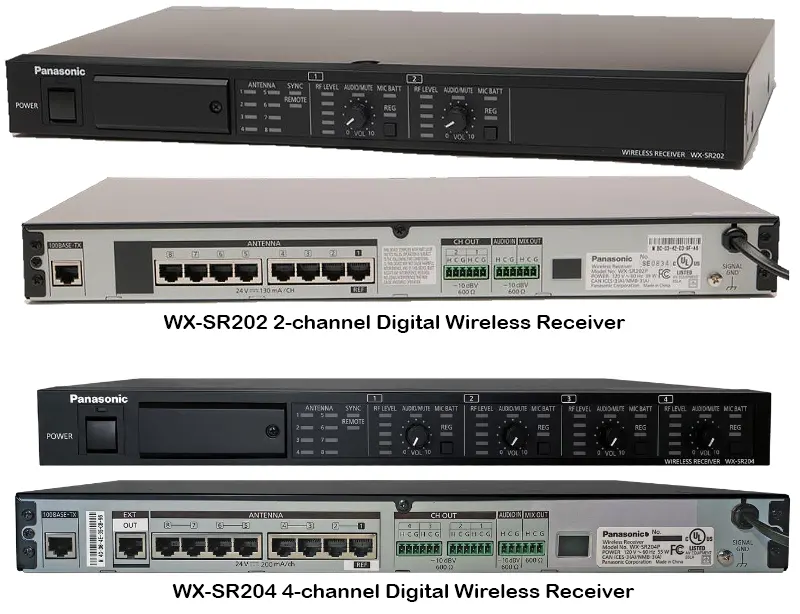

WX-SR202 2-channel Receiver
The core of Panasonic's SR200P 1.9 GHz Digital Wireless Microphone system, the WX-SR202 digital wireless receiver supports two wireless microphone channels (choose between Panasonic’s WX- ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks). Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SR202 features RJ45 (CAT5 / CAT5e / CAT6) connections up to eight (8) external antennas (WX-SA250) and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron or Q-SYS. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure Europlug connectors for channel output, external audio input and mix output provide peace of mind that they will not detach easily in any type of installation. Multiple WX-SR202’s can be installed to support up to 8 microphone channels in a single room. Ships with rack ears for easy rack mount installation.

WX-SR204 4-channel Receiver
The 4 channel version of the WX-SR202, it also adds an RJ45 connection for an optional expansion receiver.

WX-SE200 4-channel Expansion Unit
Designed to be used with Panasonic’s WX-SR204 4-channel wireless receiver, the WX-SE200 expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*. Choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options.
Ships with rack ears for easy rack mount installation.

WX-SA250 Wireless Antenna
The WX-SA250 wireless antenna is an integral part of Panasonic's SR200 1.9 GHz Digital Wireless Microphone system, providing line of sight communication with Panasonic’s ST200 wireless microphones and routes the signal flawlessly back to the WX-SR202 digital wireless receiver via CAT5 / 6 connection. Multiple antennas can be placed in a room to accommodate for room size or multiple 2- channel microphone systems. Each antenna has a maximum range of 131 feet (40-meters) and is easily adjustable to 3 lower steps so you can easily accommodate room size and minimize interference with other Panasonic wireless microphone systems installed in adjacent rooms. The WX-SA250 can easily be mounted on a wall, ceiling, or even on a microphone stand for mobile installations using the bracket included.


WX-SR202 Spec Sheet
WX-SR204 Spec Sheet
WX-SE200 Spec Sheet
WX-SA250 Spec Sheet
