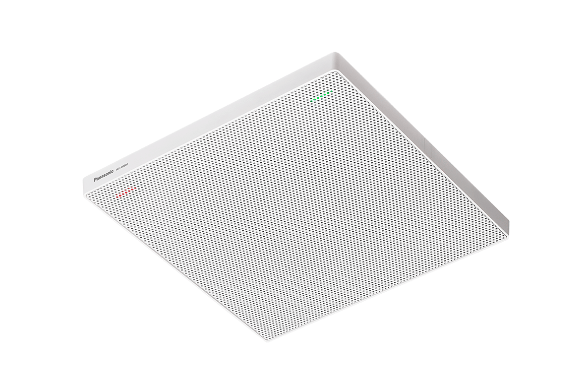

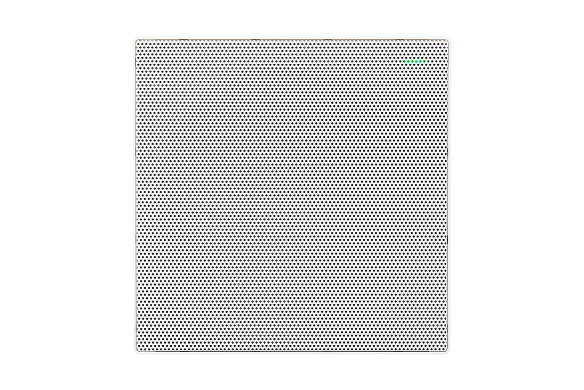

Panasonic WM-AX800 Beamforming Ceiling Microphone Array

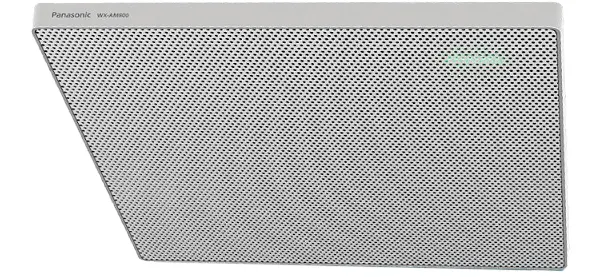

WX-AM800 Beamforming Ceiling Microphone Array
Panasonic Connect’s Beamforming Ceiling Microphone Array boasts a number of unique, customer-driven innovations to provide for ease of installation and use in meeting rooms, classrooms, or other spaces.

Designed to cover a Max 30' x 30' area with 4 adjustable zones and with the support of up to 4 exclusion areas, the WX-AM800 beamforming ceiling mic array automatically adjusts its sensitivity based on the location of the speaker and features built-in integration with 1 Panasonic PTZ camera for voice tracking (no control system required).

The WX-AM800 features Dante® digital audio connectivity with support for AES67 and a separate LAN connection for 3rd party control. The ceiling mic can be mounted in 5 different ways. Mounted in the ceiling with our patent pending ceiling bracket for a 2x2’ drop in installation (bracket included), mounted on the ceiling in a floating fashion (bracket included), mounted flush to the ceiling (bracket included), is compatible with a VESA mount (For pole-mounting, pole not included) and has hooks for suspension cables (cables not included).

The most unique feature includes the ability to add up to 2 Panasonic DECT Wireless microphones to the system without having to use rack space, thanks to the WX-AU202 Antenna/ Receiver, which mounts on a wall or ceiling and connects back to the ceiling microphone using 1 CAT5e cable (up to 195 ft run) – audio from the two DECT wireless microphone channels, along with the audio from the ceiling mic are transmitted back to the Dante network over a single CAT5e cable.

Panasonic’s Microphone System Configuration Center Software, compatible with Microsoft® Windows 10 & 11, allows the user to set the room size, place the ceiling microphones and configure a whole host of audio DSP settings such as Acoustic Echo Cancellation, Audio Input Ducking, Equalization, Digital Noise Reduction, Panasonic PTZ Camera integration, adjust the range of the Panasonic antennas and more!

WX-AU202 2-Channel DECT Antenna/Receiver
The WX-AU202 2 channel DECT Antenna / Receiver allows for the easy addition of 2 Panasonic DECT wireless microphones to a Panasonic Beamforming Ceiling Microphone Array system. This handy accessory connects directly to the WX-AM800 beamforming ceiling mic array (sold separately) via 1 CAT5e cable (maximum distance 195 feet). Easily pair up to 2 Panasonic DECT wireless microphones to the WX-AU202 antenna/ receiver. Audio from the two DECT wireless microphone channels, along with the audio from the ceiling mic are transmitted back to the Dante network over a single CAT5e cable. Each antenna has a maximum range of 90 feet (27-meters) and is easily adjustable to 2 lower settings so you can easily accommodate room size and minimize interference with other Panasonic wireless microphone systems installed in adjacent rooms. Includes a bracket for easy mounting on a wall or ceiling.


WX-AM800 Spec Sheet
WX-AU202 Spec Sheet
