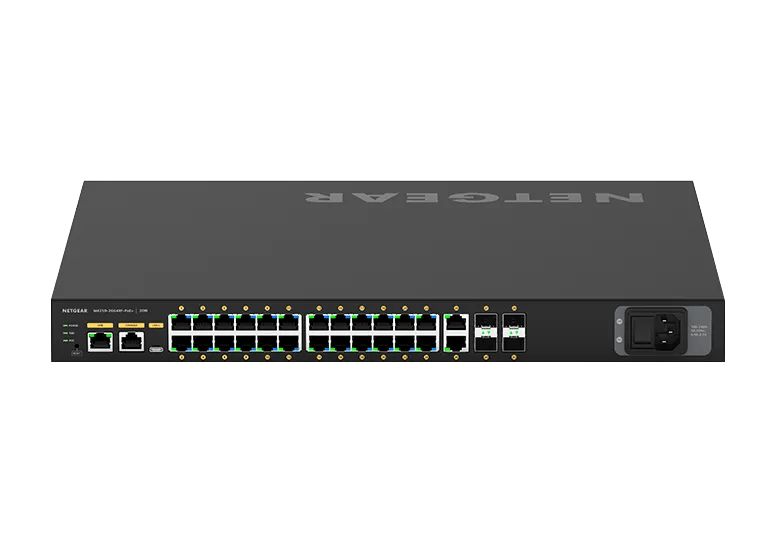

NETGEAR M4250-26G4F-PoE+ AV Switch

Netgear's M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles.

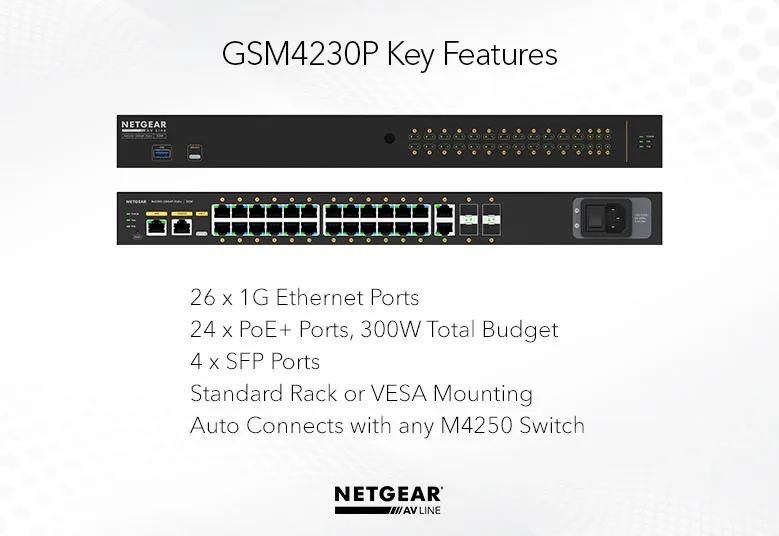

FEATURES

• 24-port 10/100/1000BASE-T (RJ45) PoE+ with 300W PoE budget
• 2-port 10/100/1000BASE-T (RJ45)
• 4-port 1000BASE-X (SFP)
• 60 Gbps non-blocking fabric across 30 ports
• Out-of-band 1G Ethernet management port
• USB-C and RJ45 RS232 console ports and USB-A storage port

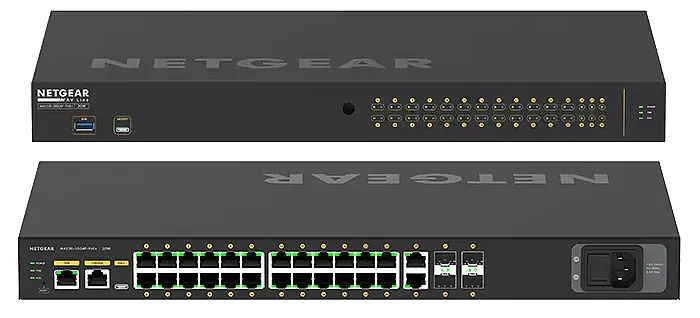

• Front black display panel and all ports in the back
• Possible reversed mounting with ports in the front
• Rack-mounting standard brackets
• Longer brackets for recessed mounting (2 inches / 5 cm)
• Threaded hole in front (1xM10) for clamps
• Threaded holes on the bottom (4xM5) for 50x100mm VESA p

PHYSICAL SPECIFICATION

• Dimensions (WxDxH) : 440 x 257 x 43.2 mm
• Weight : 4.3Kg (9.47lb)

TECHNICAL SPECS

• Primary Port Speed : 1 Gigabit
• Number of Ports : 30 (24x 1G PoE+, 2x 1G, 4x SFP)
• PoE Ports / Budget : 24 PoE+ (30W/port), 300W Budget
• IGMP Support : Enhanced (NETGEAR IGMP Plusâ„¢)
• Jumbo Frame Support : Yes, up to 12kb
• AVB Support : Yes. Electronic license required, activation key sent via email (AVB4230P-10000S).
• Acoustics : Fanless or 34dB@25ºC
• Power Consumption :
  • -With PoE: 401W/1369.01Btu/hr
  • -Without PoE: 35.8W/122.22Btu/hr
  • -Standby without any port connection: 23.4W/79.89Btu/hr

INCLUDES

• M4250-26G4F-PoE+ (GSM4230P)
• Power cord(s)
• Console USB Type-C and RJ45-DB9 cables
• Rack-mounting standard brackets
• Longer brackets for recessed mounting
• Rubber footpads for tabletop installation
• Installation guide
