NETGEAR M4250-10G2XF-PoE++ AV Switch

Netgear's M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles.

FEATURES

• 8-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 720W PoE budget
• 2-port 10/100/1000BASE-T (RJ45)
• 2-port 1000/10GBASE-X (SFP+)
• Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
• 60 Gbps non-blocking fabric across 12 ports
• Out-of-band 1G Ethernet management port
• USB-C and RJ45 RS232 console ports and USB-A storage port

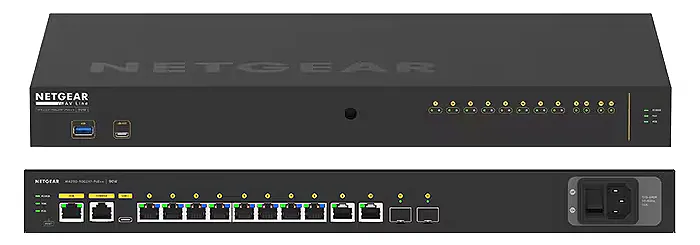

• Front black display panel and all ports in the back
• Possible reversed mounting with ports in the front
• Rack-mounting standard brackets
• Longer brackets for recessed mounting (2 inches / 5 cm)
• Threaded hole in front (1xM10) for clamps
• Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
• Selectable fan modes for fanless, quiet, or cool operation

PHYSICAL SPECIFICATION

• Dimensions (WxDxH) : 440 x 200 x 43.2mm
• Weight : 3.83Kg (8.44lb)

TECHNICAL SPECS

• Primary Port Speed : 1 Gigabit
• Number of Ports : 12 (10x 1G, 2x SFP+)
• PoE Ports / Budget : 8 PoE++ (90W/port), 720W Budget
• IGMP Support : Enhanced (NETGEAR IGMP Plusâ„¢)
• Jumbo Frame Support : Yes, up to 12kb
• Acoustics : Fanless or 50.5dB@25ºC
• Power Consumption : With PoE: 837.7W/2859.91Btu/hr; Without PoE: 26.3W/89.79Btu/hr; Standby without any port connection: 18W/61.45Btu/hr
• AVB Support : Yes. Electronic license required, activation key sent via email (AVB4212UX-10000S)

INCLUDES

• M4250-10G2XF-PoE++ (GSM4212UX)
• Power cord(s)
• Console USB Type-C and RJ45-DB9 cables
• Rack-mounting standard brackets
• Longer brackets for recessed mounting
• Rubber footpads for tabletop installation
• Installation guide
