Miller 848 Tripod System

The 848 DS20 Toggle 2-stage system provides two stage height versatility in a solid, highly reliable support package providing users with a cost-effective support option of full broadcast performance.

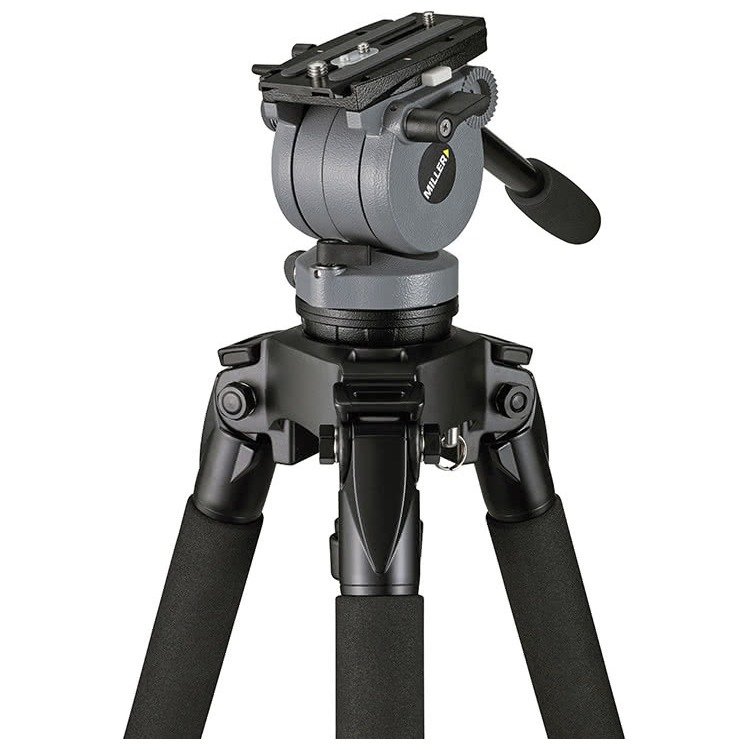

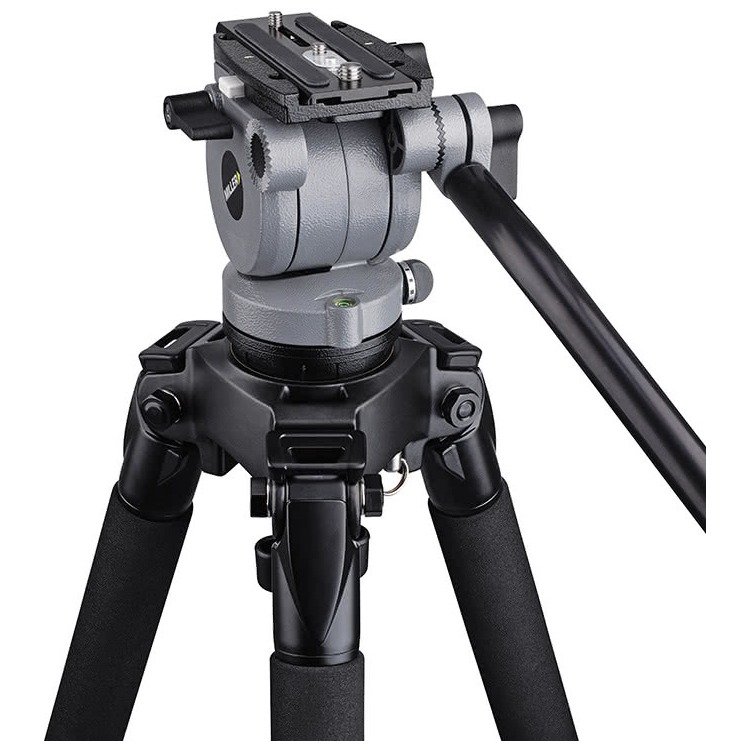

The DS20 fluid head provides a perfect lightweight solution for those who want a smaller fluid head with a greater capacity for payloads up to 10kg (22lbs).

Whether you are in the field or configured for small studio use, the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and accessorised camera configurations.

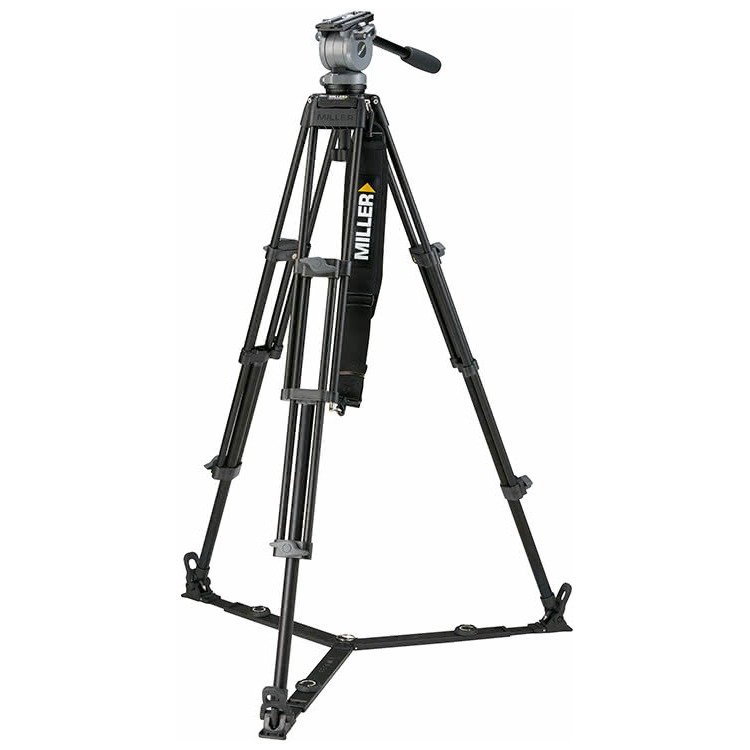

The DS20 is matched with the 2 stage Toggle (alloy) tripod and on ground spreader to give a large height range 527-1697mm (20.7-66.8"), positive leg toggle locks and quick pack down.

Whatever your application the results achieved by using the 848, DS20/Toggle system will impress your clients.

• Compact, lightweight and a hi-performer.
• Consistent fluid drag performance in extreme environments.
• 2 selectable positions of counterbalance.
• Perfect for camera payloads to 5-10kg (11-22lbs).
• Height Range: 20.7-66.8"
• Integrated 75mm bowl .
• 2-stage fast toggle adjustment legs.
• Durable black anodised alloy tubing.
• On ground spreader.
• 3 year warranty.

DS-20 Head Spec Sheet
