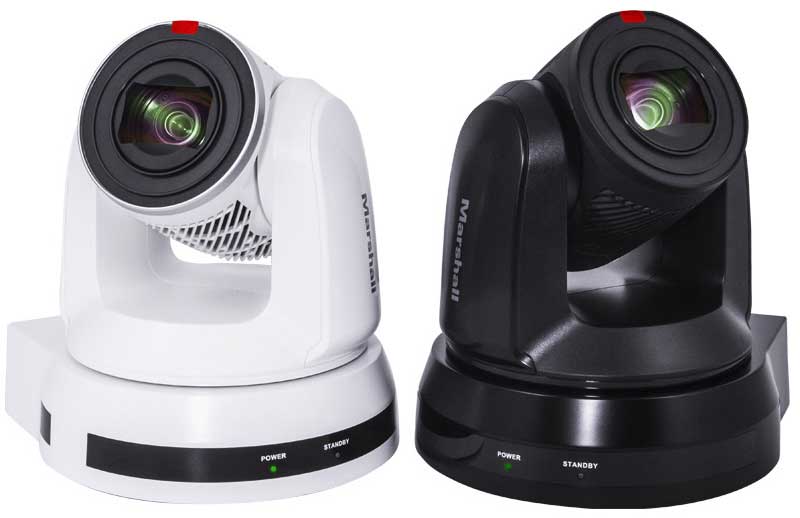

Marshall CV630 30x UHD30 IP (HEVC) PTZ Cameras

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Specs

• 8MP 1/2.5" sensor
• 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest

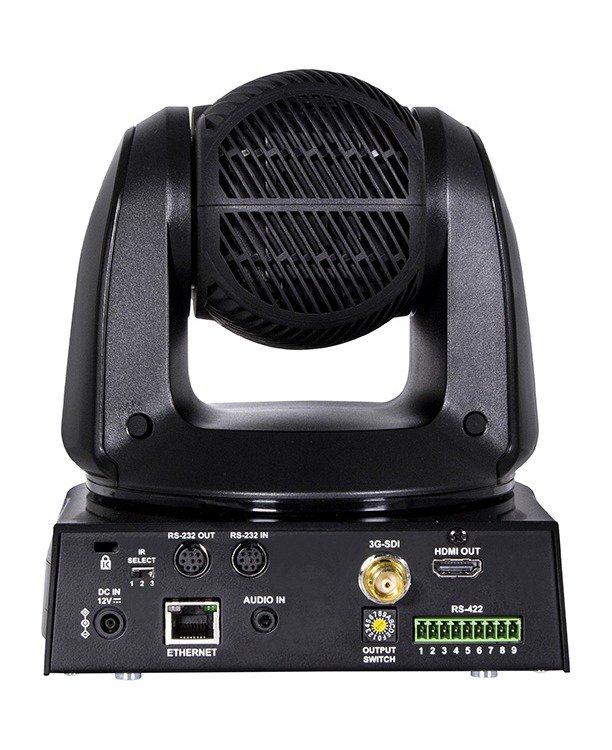

• 3GSDI, HDMI, and IP simultaneous outputs
• Simultaneous pan, tilt, and zoom
• H.265 (HEVC) and H.264 (triple-stream) networked outputs
• RTSP / RTMP / MPEG-TS / Haivision SRT
• 3840x2160p, 1920x1080p, and 1280x720p
• Stereo audio input (mic or line level) embedding
• PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
• 340° pan, 120° tilt, and 30X zoom range
• Front tally light
