Leader LV7300 Rasterizer

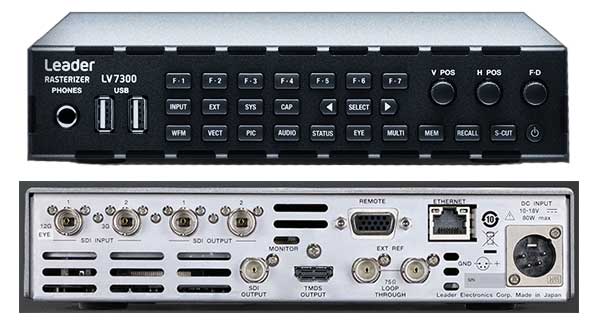

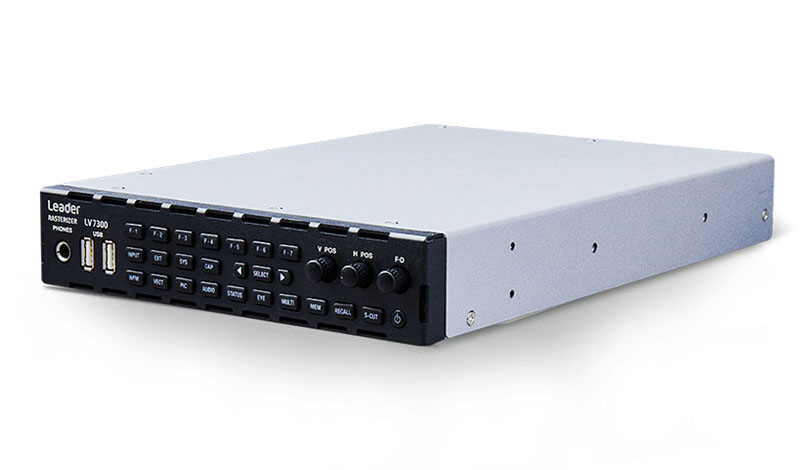

The LV7300 Rasterizer is compact without sacrificing performance, supporting SDI signals from SD through 12G rates and including physical layer testing. The LV7300 is a 1U half-rack rasterizer.

The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.

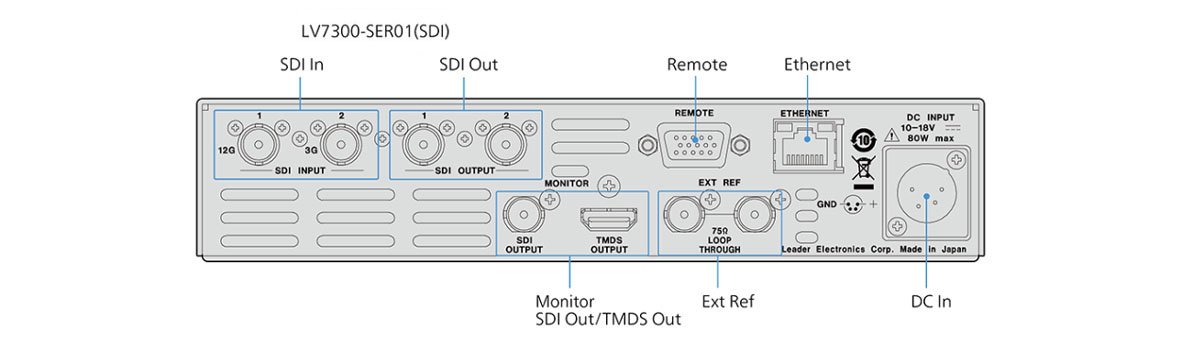

The LV7300 has a DC power input, which enables it to be used in locations where AC power is not available.

AC adapter GST90A12 is included as a standard accessory for the LV7300.

• Supports various signal inputs (See options)
  It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 4K 3G-SDI dual link.
• Eye pattern display
  From SD-SDI to 12G-SDI. In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.
• Customizable layout (See options)
  Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
• SDI signal generation function
  SDI signal generation function can handle from HD-SDI to 12G-SDI.
• HDR (See options)
  The HDR signal level monitoring and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.
• Focus Assist (See options)
  Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.
