Leader LV5350 Waveform Monitor

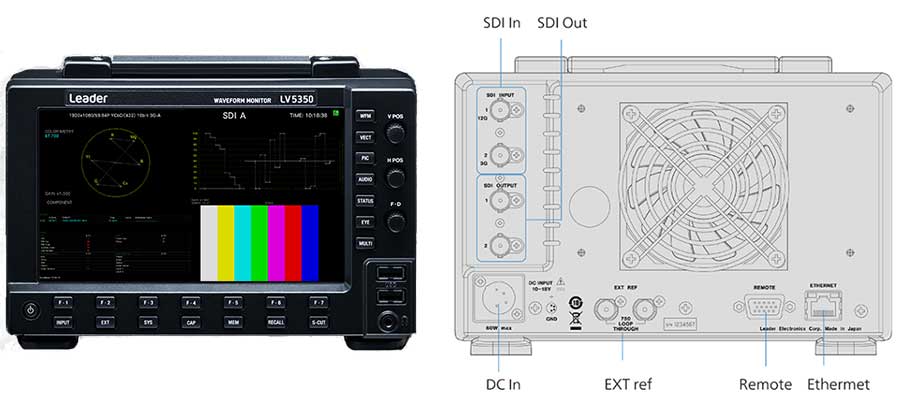

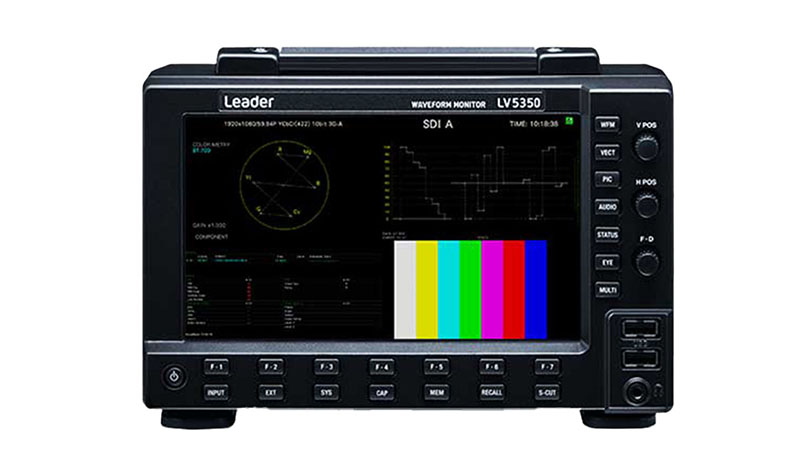

Leader's LV5350 WAVEFORM MONITOR is compact without sacrificing performance, supporting SDI signals from SD through 12G rates. The LV5350 is a 3U half-rack, short-depth waveform monitor with a built-in 7-inch touch screen display and a full array of buttons and control knobs. The waveform, vector, picture, and audio displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.

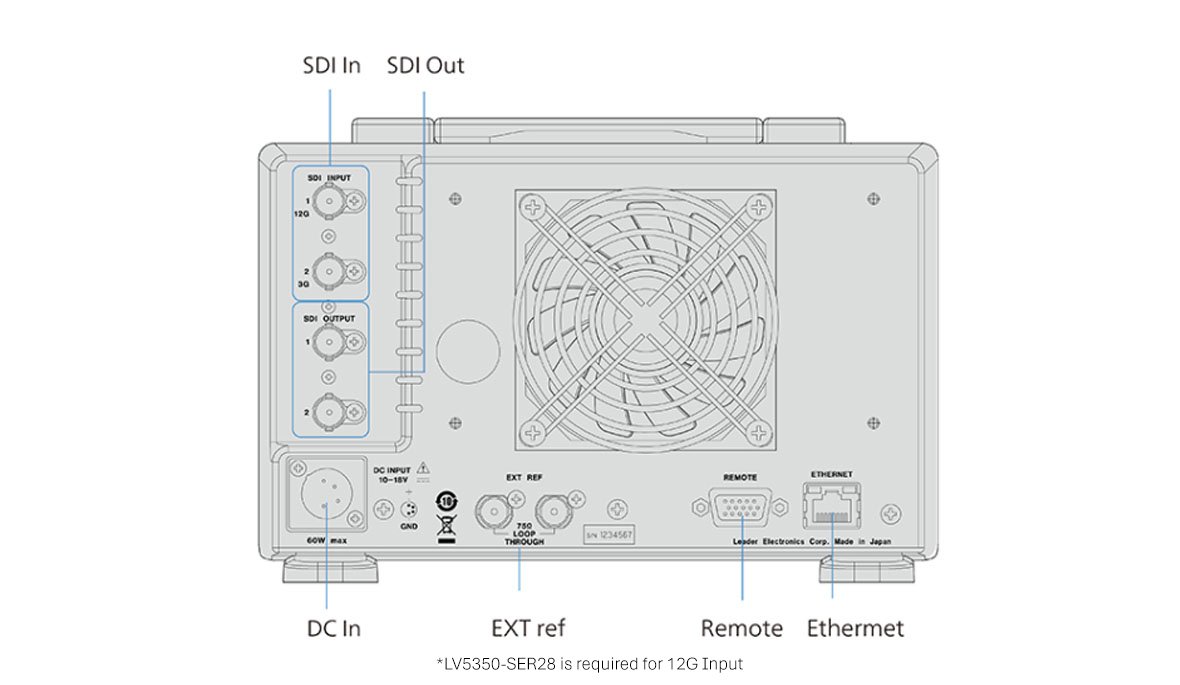

The LV5350 has a DC power input, which enables it to be used in locations where AC power supplies are not available. Additionally, the LV5350 can be battery-operated by installing a battery mount option, ideal for onset work or any location where power is a challenge. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5350 allows complex measurement and monitoring tasks to be quickly completed.

• Supports various signal inputs (See options)
  It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 4K 3G-SDI dual link.
• Excellent operability
  The LV5350 adopts a 7-inch full HD panel with a touch panel function.
• Eye pattern display
  From SD-SDI to 12G-SDI. In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.
• Customizable layout (See options)
  Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
• SDI signal generation function
  SDI signal generation function can handle from HD-SDI to 12G-SDI.
• HDR (See options)
  The HDR signal level monitoring and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.
• Focus Assist (See options)
  Leader developed a new focus detection algorithm based on nonlinear super-resolution technology; accordingly the focus with high sensitivity can be detected even with low-contrast images, which were conventionally difficult to detect.
