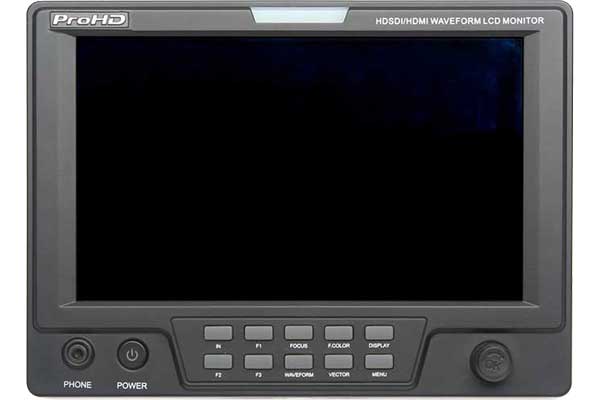

JVC DT-X71FI 7" On-Camera Monitor

The DT-X71FI is a 7-inch HDSDI/HDMI LCD monitor, with a high resolution 1024 x 600 panel, dual TALLY lights, image rotate and flip. It integrates a wide range of professional functions including waveform, vector scope, RGB histogram, red/blue switchable peaking, focus assist, false color, blue only, zebra, rotate and flip, 16-ch HDSDI audio meter, time code, and internal color bars.

The DT-X71FI accepts 2 HD/SD-SDI, 1 HDMI and 1 Composite video, and has 2 HD/SD-SDI loop through outputs, and 1 HDMI converted to SDI output. It's powered via a 4-pin XLR 12V DC connector (AC adapter included) or a snap-on 7.4V IDX SSL-JVC50 battery (optional) or the Swit S-8i50 battery (optional).
