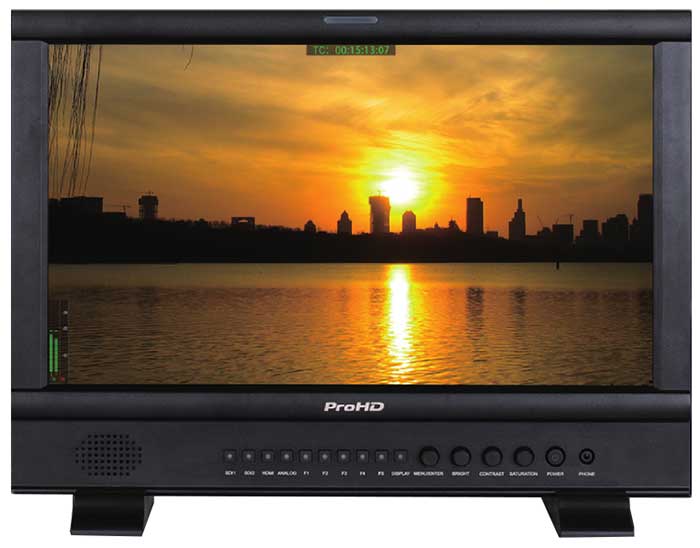

JVC DT-N17H ProHD 17.3"
Studio/Field LCD Monitor

Description

Supports 3G/HD/SD-SDI and 2K-SDI
DT-N17H supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display.

Full HD LCD panel with LED backlighting
The monitor features a 1920x1080 pixel full HD resolution LCD panel with LED backlighting, with 160° wide viewing angle (H & V), 700:1 contrast, and 16.7M color depth.

ITU-709 color space
The DT-N17H is compatible with ITU-709 standard color space for HDTV broadcasting.

Selectable gamma preset
The DT-N17H supports gamma preset selection from: 2.2, 2.4 and 2.6.

Audio meters display
The DT-N17H supports SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.

TSL UMD control and display
The DT-N17H monitor supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.

USB firmware upgradable
The Monitor offers a USB port on the rear side, for firmware upgrade. Users can download firmware to a USB disk, and the upgrade operation is directly on the monitor, without PC or other adaptors.
