Ikan EK60AAM Tripod Kit

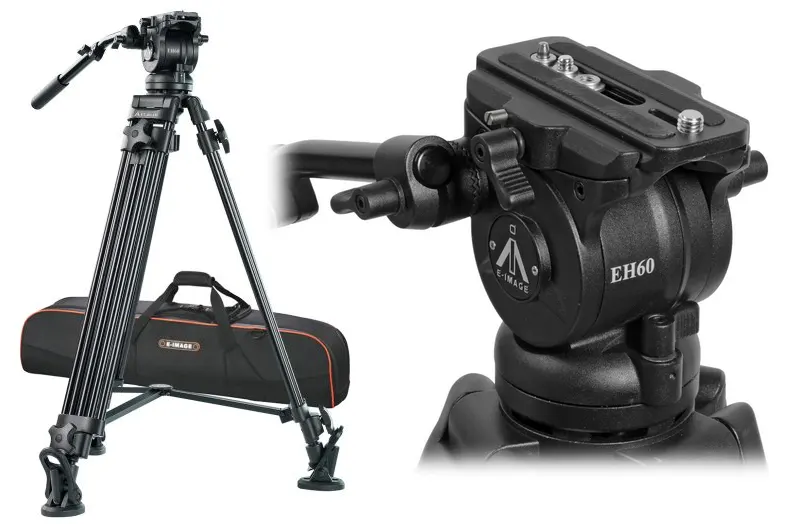

Ikan's EK60AAM Fluid Drag Video Head and Tripod is a video head and dual-stage tripod leg system designed for video cameras and rigs weighing up to 17.6 pounds. The system consists of the EH60 fluid drag head, the AT7402A aluminum tripod legs with fixed mid-level spreader, one HD7060 adjustable panhandle, and a soft bag for carrying the system. The head has fixed pan and tilt fluid drag for smooth camera moves, and a spring-loaded counterbalance system adjustable in three steps

The included sliding balance plate attaches to your camera with either of the included 1/4″-20 or 3/8″-16 camera tie-down screws. It then slides into the head’s top plate, quickly and securely attaching your camera to the tripod. You can adjust the balance of the camera on the tripod head by sliding the baseplate forward or backward. The sliding balance plate system features a safety release to help prevent the sliding baseplate from accidentally sliding out of the tripod head.

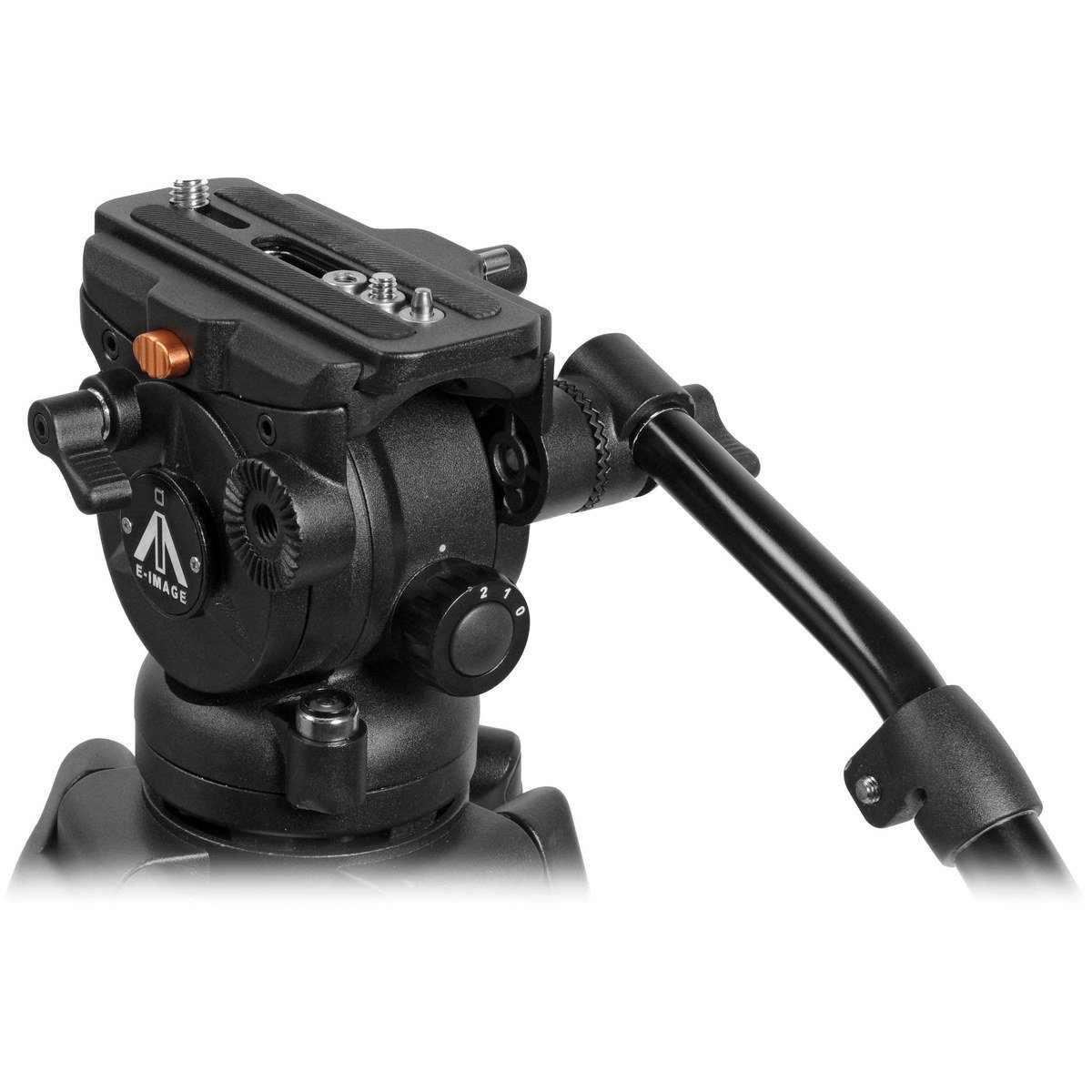

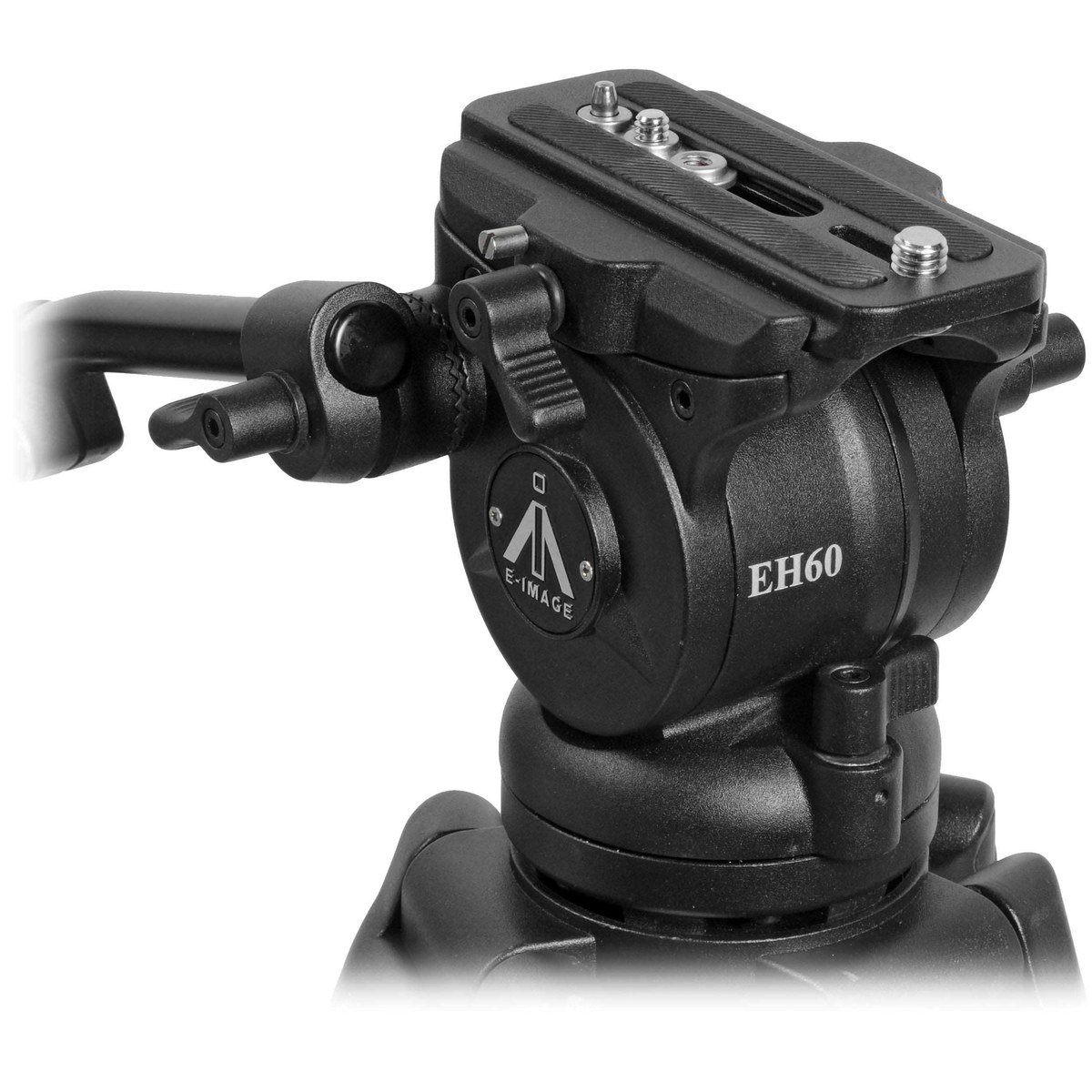

Fluid Head

• Load Capacity: 17.6 lb
• Fluid Drag
  • Tilt: Fixed
  • Pan: Fixed
• Spring-Loaded/Three-Stepped Counterbalance
  • 0: 0 lb / 0kg
  • 1: 6.6 lb / 3kg
  • 2: 13.2 lb / 6kg
• 75mm Claw ball for fast leveling
• Bubble level
• 90° Tilt down—the camera can point straight down
• 45° Tilt up
• 360° Panning
• Mounting rosettes on the left and right sides

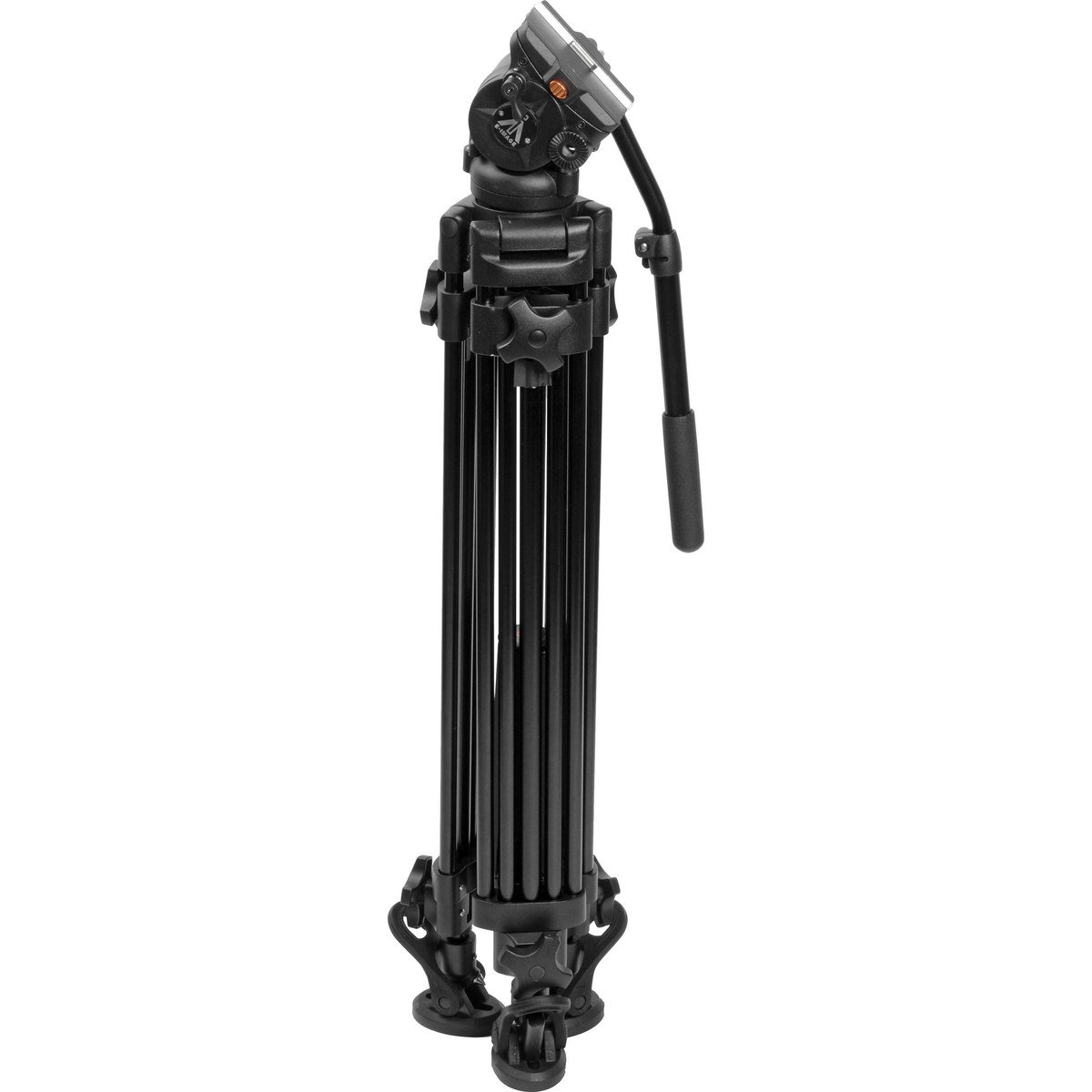

Legs

• Built-in fixed spreader
• Working Height Range: 31 to 63″
• Rotary clamp leg locks
• Foot spikes
• Removable anti-slip pads/foot spike protectors
• Integrated leg wrap bungee and clip
