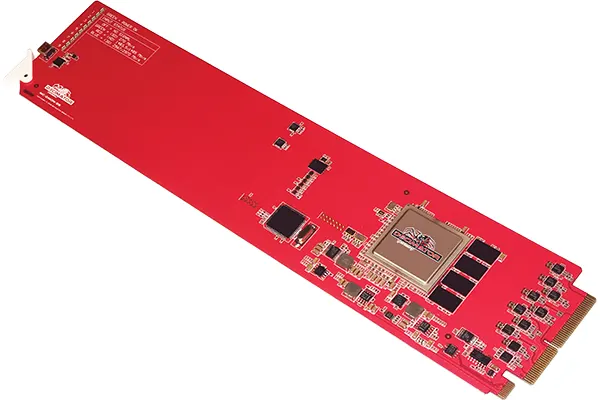

Decimator MC-DMON-9S 9-Channel 3G/HD/SD Multiviewer

MC-DMON-9S

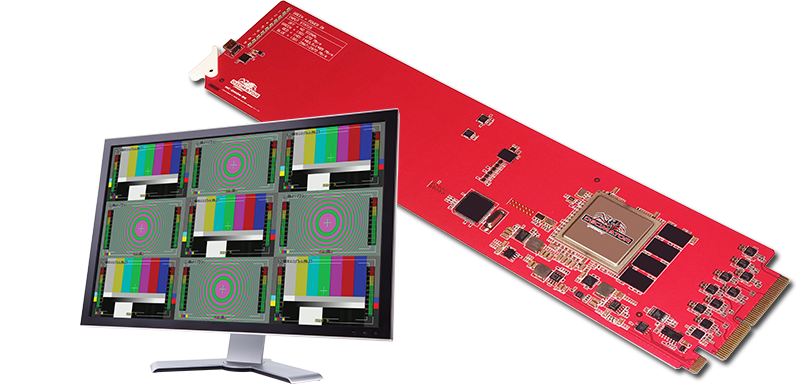

Decimator MC-DMON-9S 9-Channel 3G/HD/SD Multiviewer

  • openGear card
  • 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer
  • Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • Fast switching between inputs using Full-Screen scaling
  • 16 Character UMD overlay per window
  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485

$995.00

FREE UPS SHIPPING

Decimator MC-DMON-9S 9-Channel 3G/HD/SD Multiviewer

  • openGear card
  • 1 to 9 Channel (3G/HD/SD)-SDI MultiViewer
  • Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • Fast switching between inputs using Full-Screen scaling
  • 16 Character UMD overlay per window
  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485
$995.00
FREE UPS SHIPPING
  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • Low cost miniature (3G/HD/SD)-SDI 1 to 9 MultiViewer or 9 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Safe Action and Safe Title overlay per window with individual enables and adjustment
  • Centre Cross overlay per window with individual enable
  • Audio ID overlay
  • 3 pin connector on the DR1-10B1G rear module allows for Dynamic UMD and Tallies via RS422/485 using the industry standard TSL protocol
  • Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
  • Tally boxes allows for up to 4 Tallies per window
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen MultiViewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • 9 x (3G/HD/SD)-SDI inputs with auto detection (29 Formats supported in total)
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI outputs
  • USB Mini B port for control and firmware updates
  • Supports openGear DashBoard for control
  • The DR1-10B1G rear is sold separately and has 10 BNC connectors and a 3 pin connector for RS422/485


Accessory:


Decimator DR1-10B1G Rear Connector

  • 10 x BNC and General Purpose Connector Rear
  • For use with the following openGear cards:
    • MC-DMON-QUAD
    • MC-DMON-9S

$50.00

FREE UPS SHIPPING
w/$100 order

Decimator DR1-10B1G Rear Connector

  • 10 x BNC and General Purpose Connector Rear
  • For use with the following openGear cards:
    • MC-DMON-QUAD
    • MC-DMON-9S
$50.00
FREE UPS SHIPPING
w/$100 order
