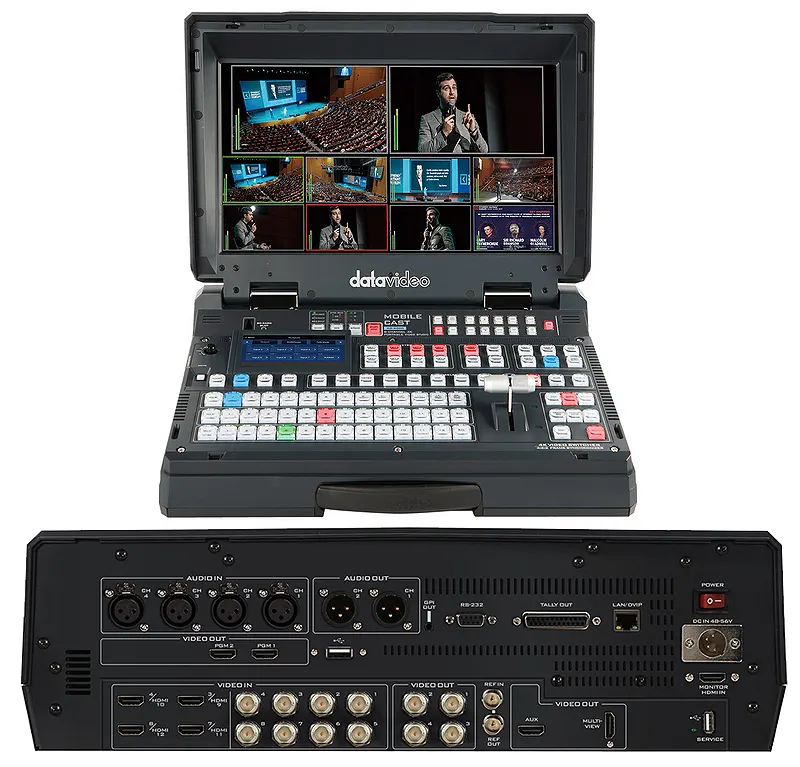

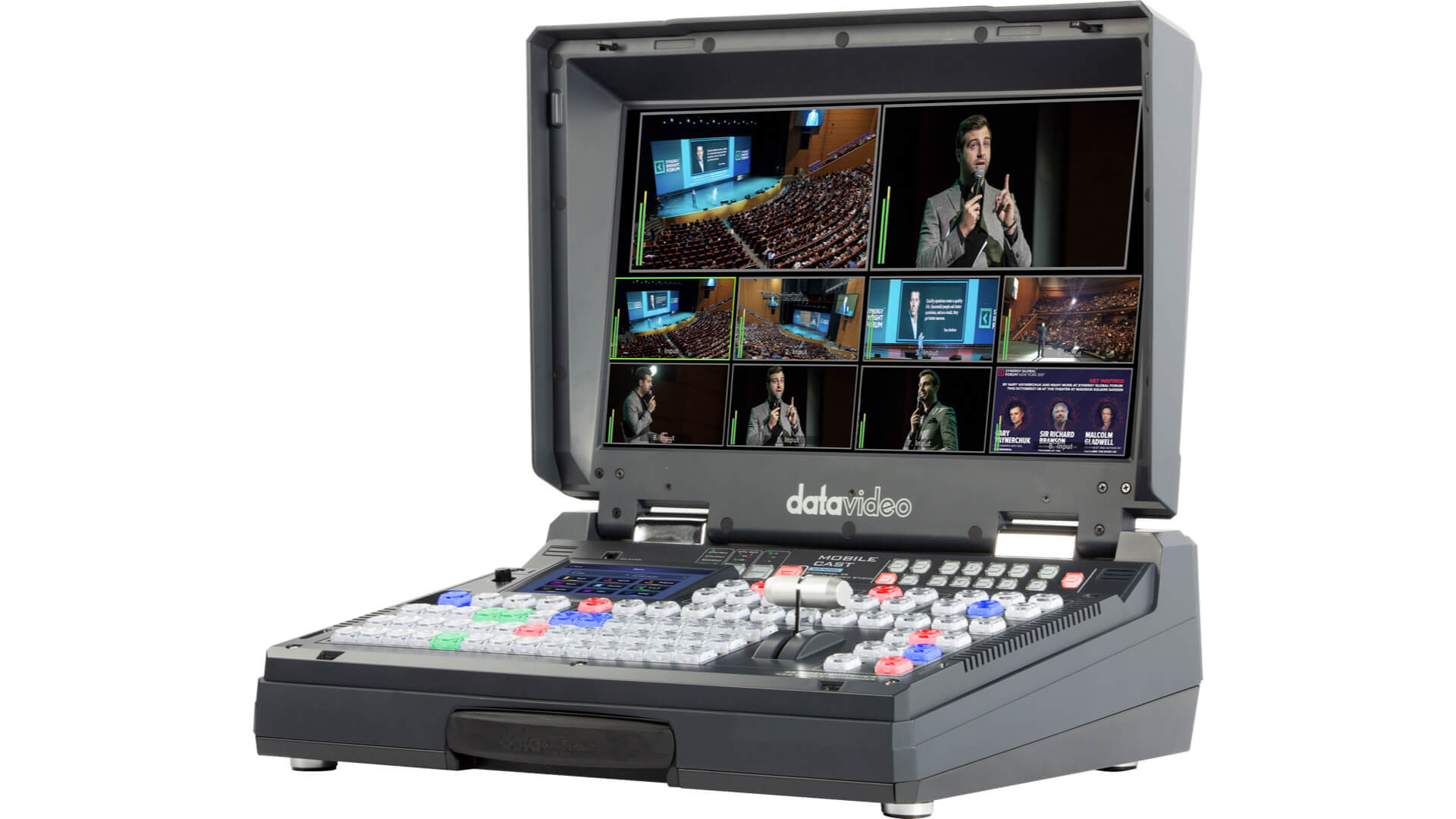

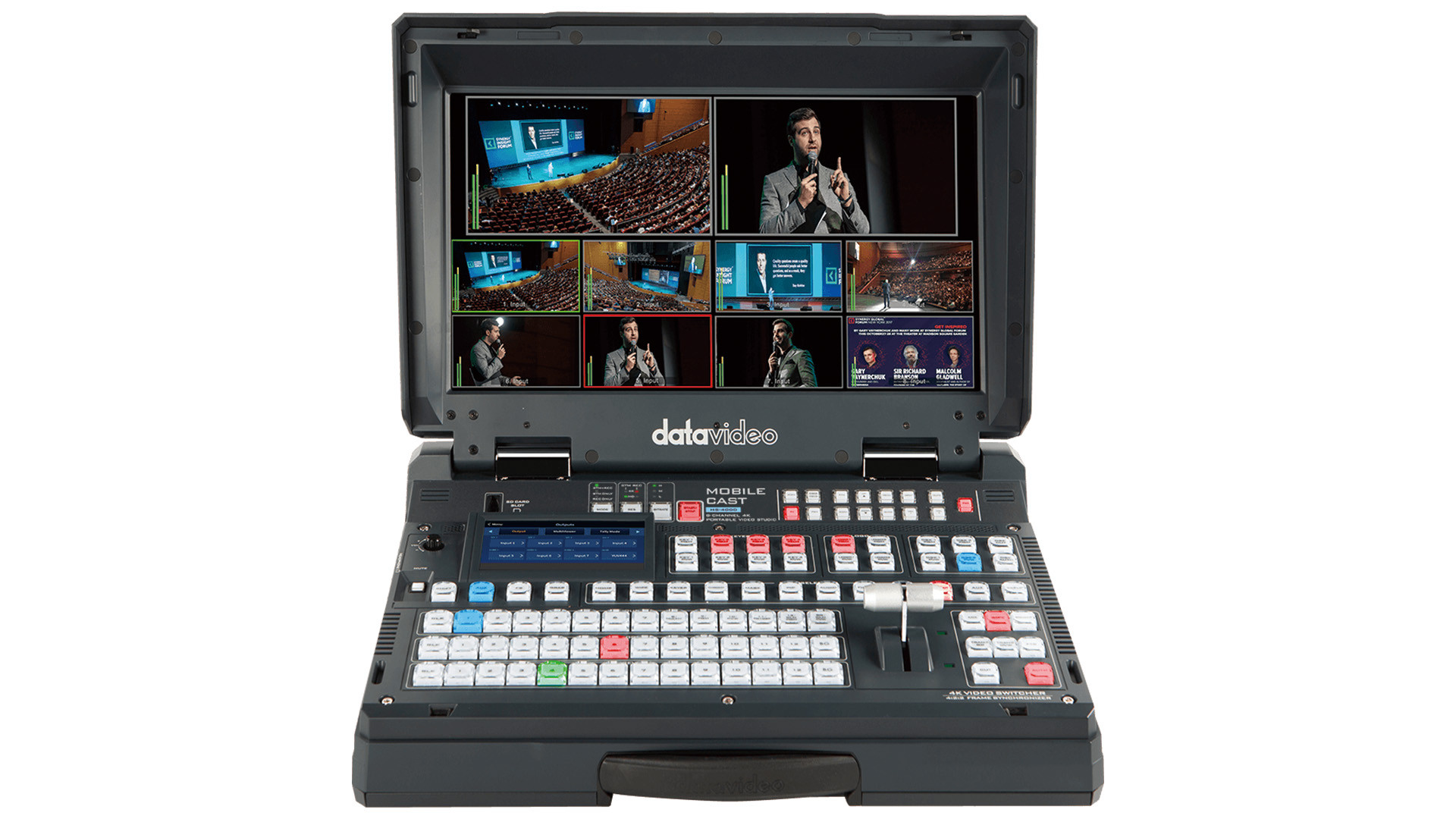

Datavideo HS-4000
8 Input Portable 4K Production Studio

HS-4000 Features

True 12G 4K 50/60 Video Production Switcher
Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.

Versatile Video Inputs
The HS-4000 can accept video inputs from various sources, including PCs, multimedia players with HDMI 2.0 output, and 12G-SDI cameras. This versatility allows for seamless integration of different devices and sources into the production workflow.

The HS-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

12-Channel Application Built upon an 8 Video Switching Design
Responsive and seamless interface switching between 12G SDI and HDMI 2.0 on four shared channels. By upgrading from 8 channels to a 12 channel machine, it adds greater versatility to your hardware connections and more possibilities to live program production.

Integrated 4K UHD Monitor
Equipped with a high-quality 17.3-inch 4K UHD monitor, the mobile studio provides a multiview display. This display allows producers and operators to monitor multiple video sources simultaneously, ensuring smooth production execution.

The 4K monitor has four times of resolution than a Full HD monitor, resulting in much sharper and more detailed images.

The increased pixel density of a 4K monitor means that individual pixels are smaller and less noticeable, resulting in sharper text, images, and graphics. The higher resolution of a 4K monitor improves productivity, as you can have multiple windows open side by side without sacrificing legibility or clarity.

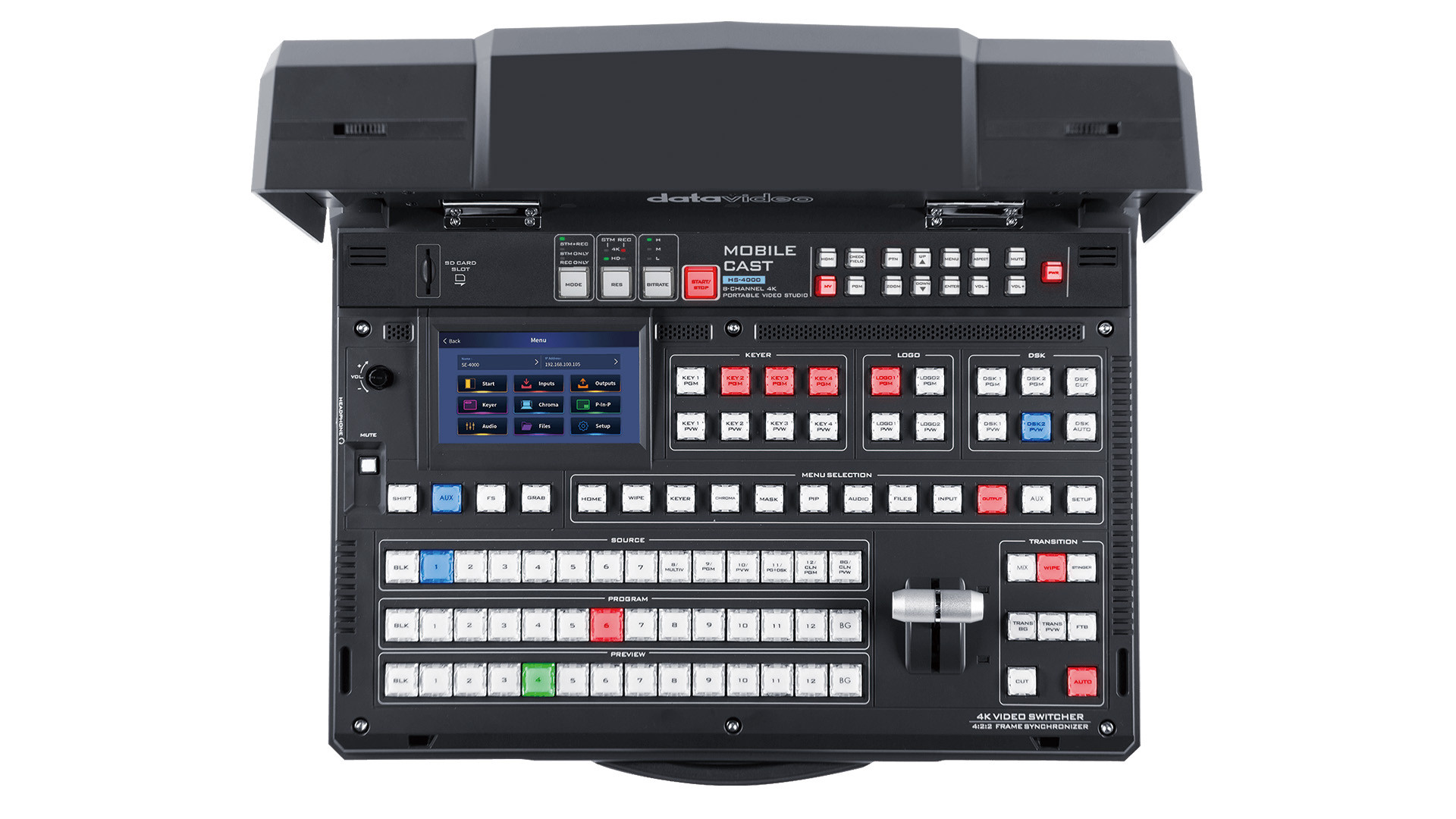

5" Touchscreen Display
With the 5" touchscreen panel built-in, you will not need a laptop or app to assist with your live production.

With many built-in functions, including user memory with customized icon, transition animation set up, chroma key, luma key, DSK, PIP, wipe generator, still stores, and logo insertion; these can all be done on the 5" LCD touchscreen.

More Multiview Layouts
Datavideo 4000 series video switcher offers 6 different multiview layouts for monitoring. These layouts likely provide users with flexibility in arranging and viewing multiple video sources simultaneously, enhancing the overall usability of the video switcher for various production setups.

Picture-In-Picture Frames with Unique 3D Borders
Create 2 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including unique 3D borders.

Varieties of 3D PIP Configurations
The two built-in PIP windows can be overlaid on one another. In addition to the default corner places, you can further change the window's size, position and display ratio. You can also crop the window to make it square.

By adding a shaded border, you will then be able to fully generate an advanced 3D PIP window with a self-defined border color.

WIPE Transition Effects
There is a total of 64 wipe transition effects designed for different TV programs. The WIPE transition is a very crucial element in program production. The SE-4000 provides 64 eye- catching WIPE effects with configurable border color and width. The border can be further softened to make the WIPE effect unique.

Still Image Thumbnails
Save up to 250 4K still images such as sequential program images, images of various scenarios, full size logos, school or faculty badges, etc.

You can also capture important moments of your program and save these images for post-edits. This library of images is a good tool for future video production.

Lumakey, Chromakey, Linear Key and Downstream Key
The HS-4000 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.

Pre-saved 10 virtualsets with each having 4 configurable camera angles; save up to 40 virtualsets
In addition to user saved still images, the SE-4000 also provides up to 10 sets of or 40 high quality 4K virtualsets for left, front, right and long shot auxiliary cameras. They are designed for video conferences and interview programs.

Not only that, the user can visit www.datavideovirtualset.com to download more virtualsets. Different themes for various scenarios are available on the website for download. In addition to the built-in virtualsets, you still have 200+ still image slots for saving extra virtualsets on the HS-4000 for video production.
