Clear-Com FreeSpeak II Intercom Products

Clear-Com Base Station Clear-Com Beltpack Clear-Com Antenna Clear-Com Splitter



Clear-Com FSII-BASE-II Base Station

  • Supports up to 25 Beltpacks (Transceivers required)
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
FSII-BASE-II Spec Sheet

$11,910.00

FREE UPS SHIPPING

Clear-Com FSII-BASE-II-X5 Base Station

  • Same as FSII-BASE-II except it has a 5-pin female headset jack on front of unit instead of standard 4-pin male
FSII-BASE-II Spec Sheet

$11,910.00

FREE UPS SHIPPING

Clear-Com FSII-BASE-II-5 Base Station

  • Supports up to 5 Beltpacks (Transceivers required)
  • Can be upgraded to 25 Beltpacks with license purchase
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter

$8475.00

FREE UPS SHIPPING

Clear-Com FSII-BASE-5-X5 Base Station

  • Same as FSII-BASE-5 except it has a 5-pin female headset jack on front of unit instead of standard 4-pin male

$8475.00

FREE UPS SHIPPING

Clear-Com FSII-BASE-II-25BP-LICENSE

  • Upgrades any FSII-BASE-II-5 from 5 beltpacks to 25 beltpacks

$3435.00

FREE UPS SHIPPING

Clear-Com FSII-SPL Transceiver Splitter

Provides 5 FSII transceiver feeds on one port on FSII base station
  • (1) E1 RJ45/SFP input to (5) E1 Non-IP transceivers
  • Allows more transceivers which allows more beltpacks

$2430.00

FREE UPS SHIPPING

Clear-Com FSII-TCVR-19-US 1.9GHz Transceiver

  • Supports five FSII-BP19 beltpacks per FSII-TCVR-19 transceiver
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
FSII-TCVR-19-US Spec Sheet

$1960.00

FREE UPS SHIPPING

Clear-Com FSII-BP19-X4-US Beltpack

  • 1.9 GHz for use in US
  • 4-pin XLR-Male headset connector
  • Includes USB cable, belt clip, shoulder strap and BAT60 battery (18+ hour battery life)
  • Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
FSII-BP19 Spec Sheet

$2400.00

FREE UPS SHIPPING

Clear-Com FSII-BP19-X5-US Beltpack

  • Same as FSII-BP19-X4-US except with 5-pin XLR-Female connector for headset

$1940.00

FREE UPS SHIPPING

Clear-Com FSII-BP19-X7-US Beltpack

  • Same as FSII-BP19-X4-US except with 7-pin XLR-Male connector for headset

$2020.00

FREE UPS SHIPPING

Clear-Com FSII-TCVR-24 2.4GHz Transceiver

  • Supports four FSII-BP24 beltpacks per FSII-TCVR-24 transceiver
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
FSII-TCVR-24 Spec Sheet

$1960.00

FREE UPS SHIPPING

Clear-Com FSII-BP24-X4 Beltpack

  • 2.4 GHz
  • 4-pin XLR-Male headset connector
  • Includes USB cable, belt clip, shoulder strap and BAT60 battery (18+ hour battery life)
  • Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
FSII-BP24 Spec Sheet

$2290.00

FREE UPS SHIPPING

Clear-Com FSII-BP24-X5 Beltpack

  • Same as FSII-BP24-X4 except with 5-pin XLR-Female connector for headset

$1895.00

FREE UPS SHIPPING

Clear-Com FSII-BP24-X7 Beltpack

  • Same as FSII-BP24-X4 except with 7-pin XLR-Male connector for headset

$1980.00

FREE UPS SHIPPING

Clear-Com AC60

  • FreeSpeak II Battery Charger for (5) FSII-BP or BAT60
  • Use it either as a drop-in charger for the whole beltpack, or you can charge separate beltpack Li-Ion batteries (BAT60) in the charging slots provided.
AC60 User Manual

$880.00

FREE UPS SHIPPING

Clear-Com BAT60

  • FreeSpeak II Lithium-Ion Battery
  • For use in FSII 1.9GHz and FSII 2.4GHz beltpacks

$98.05

FREE UPS SHIPPING
w/$100 order

Clear-Com FSII-BASE-II Base Station

  • Supports up to 25 Beltpacks (Transceivers required)
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter
FSII-BASE-II Spec Sheet

$11,910.00
FREE UPS SHIPPING

Clear-Com FSII-BASE-II-X5 Base Station

  • Same as FSII-BASE-II except it has a 5-pin female headset jack on front of unit instead of standard 4-pin male
FSII-BASE-II Spec Sheet

$11,910.00
FREE UPS SHIPPING

Clear-Com FSII-BASE-II-5 Base Station

  • Supports up to 5 Beltpacks (Transceivers required)
  • Can be upgraded to 25 Beltpacks with license purchase
  • Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
  • Supports 2 transceivers natively and up to 10 transceivers via FSII splitter

$8475.00
FREE UPS SHIPPING

Clear-Com FSII-BASE-5-X5 Base Station

  • Same as FSII-BASE-5 except it has a 5-pin female headset jack on front of unit instead of standard 4-pin male

$8475.00
FREE UPS SHIPPING

Clear-Com FSII-BASE-II-25BP-LICENSE

  • Upgrades any FSII-BASE-II-5 from 5 beltpacks to 25 beltpacks

$3435.00
FREE UPS SHIPPING

Clear-Com FSII-SPL Transceiver Splitter

Provides 5 FSII transceiver feeds on one port on FSII base station
  • (1) E1 RJ45/SFP input to (5) E1 Non-IP transceivers
  • Allows more transceivers which allows more beltpacks

$2430.00
FREE UPS SHIPPING

Clear-Com FSII-TCVR-19-US 1.9GHz Transceiver

  • Supports 5 FSII-BP19 beltpacks per FSII-TCVR-19 transceiver
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
FSII-TCVR-19-US Spec Sheet

$1960.00
FREE UPS SHIPPING

Clear-Com FSII-BP19-X4-US Beltpack

  • 1.9 GHz for use in US
  • 4-pin XLR-Male headset connector
  • Includes USB cable, belt clip, shoulder strap and BAT60 battery (18+ hour battery life)
  • Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
FSII-BP19 Spec Sheet

$2400.00
FREE UPS SHIPPING

Clear-Com FSII-BP19-X5-US Beltpack

  • Same as FSII-BP19-X4-US except with 5-pin XLR-Female connector for headset
$1940.00
FREE UPS SHIPPING

Clear-Com FSII-BP19-X7-US Beltpack

  • Same as FSII-BP19-X4-US except with 7-pin XLR-Male connector for headset
$2020.00
FREE UPS SHIPPING

Clear-Com FSII-TCVR-24 2.4GHz Transceiver

  • Supports four FSII-BP24 beltpacks per FSII-TCVR-24 transceiver
  • Green LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric and imperial threads)
FSII-TCVR-24 Spec Sheet

$1960.00
FREE UPS SHIPPING

Clear-Com FSII-BP24-X4 Beltpack

  • 2.4 GHz
  • 4-pin XLR-Male headset connector
  • Includes USB cable, belt clip, shoulder strap and BAT60 battery (18+ hour battery life)
  • Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
FSII-BP24 Spec Sheet

$2290.00
FREE UPS SHIPPING

Clear-Com FSII-BP24-X5 Beltpack

  • Same as FSII-BP24-X4 except with 5-pin XLR-Female connector for headset
$1895.00
FREE UPS SHIPPING

Clear-Com FSII-BP24-X7 Beltpack

  • Same as FSII-BP24-X4 except with 7-pin XLR-Male connector for headset
$1980.00
FREE UPS SHIPPING

Clear-Com AC60

  • FreeSpeak II Battery Charger for (5) FSII-BP or BAT60
  • Use it either as a drop-in charger for the whole beltpack, or you can charge separate beltpack Li-Ion batteries (BAT60) in the charging slots provided.
AC60 User Manual

$880.00
FREE UPS SHIPPING

Clear-Com BAT60

  • FreeSpeak II Lithium-Ion Battery
  • For use in FSII 1.9GHz and FSII 2.4GHz beltpacks

$98.05
FREE UPS SHIPPING
w/$100 order

FreeSpeak II systems are available in 1.9Ghz and 2.4Ghz versions. The 1.9Ghz system is a DECT system that operates between 1.92 and 1.93 Ghz. The 2.4Ghz system is a frequency-hopper that operates from 2400Ghz through 2480Ghz. The user experience in terms of audio and operation is identical. One difference between the two frequencies is that 1.9Ghz antennas can support 5 beltpacks, while 2.4Ghz antennas can support 4 beltpacks.

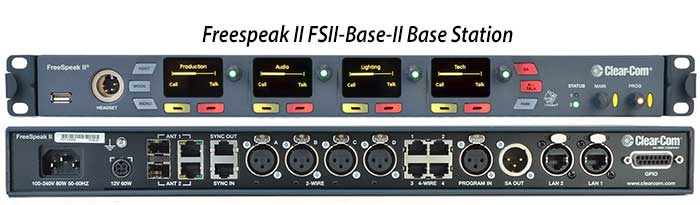

Base Station
The basestation has connections for two Partylines and five 4-wires including a dedicated SA output and Program audio input.

The FreeSpeak base station serves as the heart of the wireless communication system for all digital wireless beltpack users. All wired and wireless communications flow through the basestation. Each wireless beltpack and wired intercom connection on the rear panel has its own full-duplex port, and the voice communication from each is sampled, mixed, and re-routed throughout the system as desired.

The base station supports up to 20 wireless beltpacks, with a front-panel vacuum fluorescent display showing status and battery information. Each beltpack has its own timeslot and can be individually addressed by the base, allowing multiple combinations of beltpack-to-beltpack and small-group conversations to happen simultaneously.

Please note that you MUST have at least one antenna for each area of 5 beltpack users for 1.9Ghz antennas or 4 beltpack users for 2.4Ghz antennas. The base station can support 2 antennas directly or you can add 1x5 antenna splitters to obtain more beltpacks and more area coverage.

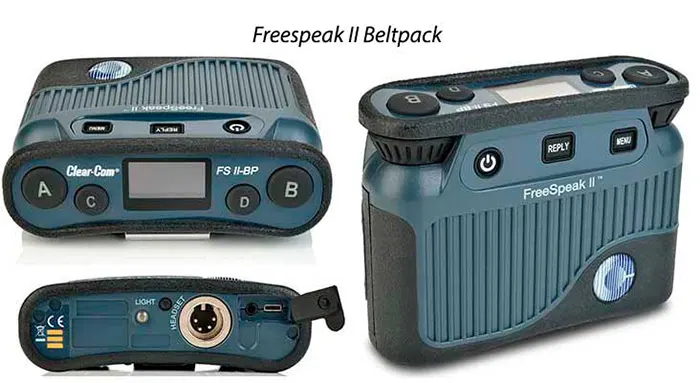

Beltpacks
The all-new five-channel, full-duplex FreeSpeak II digital beltpack was uniquely designed for the rigorous demands of large-scale operations and continuous communication use. Ergonomic form factor, intuitive operation, and a rugged housing make the beltpack ideal for extended use. They are available with XLR-4M, XLR-5F, or XLR-7M headset connectors.

Beltpack Features:

  • Up to five communication routes per beltpack, each with a 5 or 10 character label
  • Four programmable pushbuttons, two rotary encoders and a reply button
  • Menu driven display, which can be partially or completely restricted
  • Secure system - beltpacks are registered to a particular base station or Matrix
  • Internal antenna - no antenna breakage or damage
  • Long battery usage - typically 18 hours of continuous talk time
  • Two battery options - rechargeable Li-Ion cells or disposable Alkaline AA Batteries
  • Drop-in charging port with built-in USB battery and beltpack charging capability
  • Strong metallic beltclip and shoulder strap points
  • Over-the-air beltpack easy registration and regionalization
  • Real-time monitoring of battery per beltpack
  • "Listen Again" audio memory to replay last 15 seconds of audio
  • Technician's flash light on rear


Specs

BASESTATION SPECS:
  • Base-to-Beltpack Frequency Response: 100 Hz - 7.1 kHz.
  • No. of Beltpacks per Base Station: 20
  • No. of Transceiver/ Antennas Supported by Base, Basic Base: 10
  • No. of Active Antenna Ports: 2
  • PC Programming Port: DB9
  • Relay Port: DB9
  • Partyline Intercom A and Intercom B (each): XLR-3F with XLR-3M loop through, on/off termination switch (via software)
  • Four-Wire/Matrix Connection: 4 RJ-45 (Intercom 3 - 6)
  • Program Input: XLR-3F, transformer isolated, line-level input
  • Stage Announce Output: XLR-3M, transformer isolated, line-level output
  • Front-Panel Headset: 4-pin male connector with 2-channel capability and individual talks and listens
  • Front-Panel Display: 254 x 32 dot-graphic VFD
  • Front-Panel Indicators: 2 Talk LEDs for frontpanel headset, CH A and CH B partyline enable LEDs, Program Input enable LED, 10 individual antenna LEDs
  • Base-Station Programming/Editing: Push-to-enter rotary encoder
  • Dimensions: 1RU unit, 1.75 x 19.0 x 12.5 in (44 x 483 x 312 mm) (HxWxD)
  • Weight :10.8 lbs (4.9 kg)
BELTPACK SPECS:
  • Audio Bandwidth: 200 Hz - 7.5KHz (G.722)
  • No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 pairs), 2 controls and a main volume
  • Mode of Operation: Full duplex on all routes
  • Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
  • Enter / Answer-Back Button: 1
  • Frequency Spectrum: 1.88GHz - 1.93GHz DECT Cellular auto roaming technology or 2400Ghz through 2480Ghz frequency-hopper
  • Range: Up to 1475ft (450m) in good radio frequency conditions, 800 feet typical
  • Battery: Li-Ion or 3 AA alkaline cells
  • Battery Charging: Drop-in charger (AC60) or local USB
  • Battery Life: 18+ hours with Li-ion; 6 hours with 3 x Alkaline AA cells
  • Headset Connector: 4-pin male, Clear-Com standard
  • Microphone Type: Electret and Dynamic, selectable in beltpack menu
  • Microphone Level and Headset Limiter: Selectable in beltpack menu
  • Headset Limiter: Selectable from beltpack menu
  • Environmental: IP-65 water and dust resistance; -67-degrees F to +158-degrees F (-55-degrees C to +70-degrees C)
  • Dimensions: Tapered design at largest points approx. 5 x 1.5 x 3.75 in (130 x 45 x 97 mm) (dwh)
  • Weight: 9.0 oz (0.4 kg) including batteries

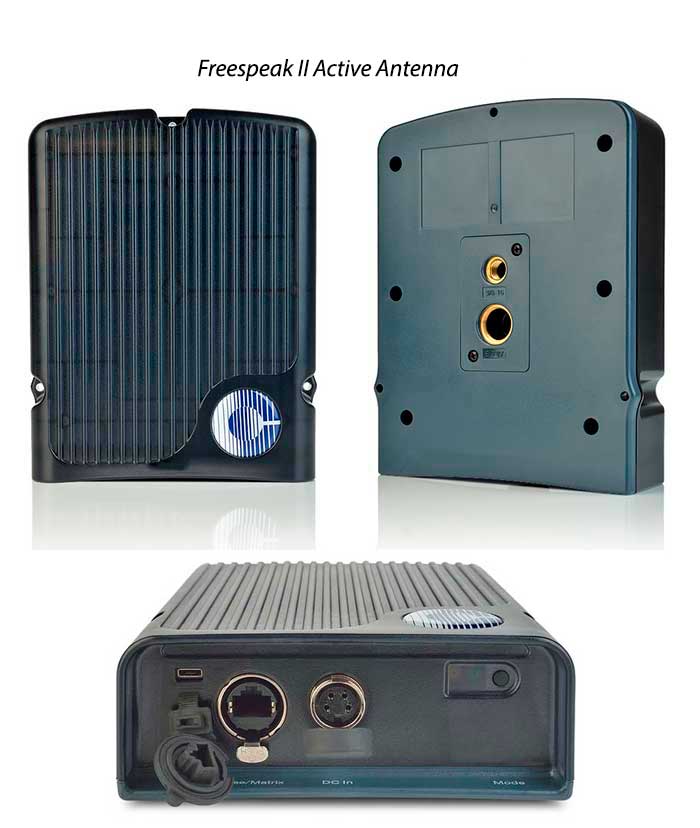

ANTENNA:
  • Beltpacks Supported Per Active Antenna:
    • 1.9Ghz Antenna: 5
    • 2.4Ghz Antenna: 4
  • Active Antenna Transmission Range: Up to 1475ft (450m) to beltpack in good conditions, 800 feet typical
  • Maximum Distance, Base to Antenna via Transceiver Port: 3,200 ft (1,000 m) on 4-pair CAT-5 or better cable
  • Maximum Distance, Antenna Powered by FSII-BASE (Base): 975 ft (300 m) on CAT-5 or better cable
  • Local Powering: 24VDC power supply
  • Connection to FreeSpeak II Base: RJ-45
  • Mounting: Integral screw mounts or standard microphone mounting (imperial and metric)
  • Dimensions: 6.9 x 5.4 x 2.1in (175 x 135 x 50mm) (HxWxD)
  • Weight: 11.9 oz (0.45 kg)

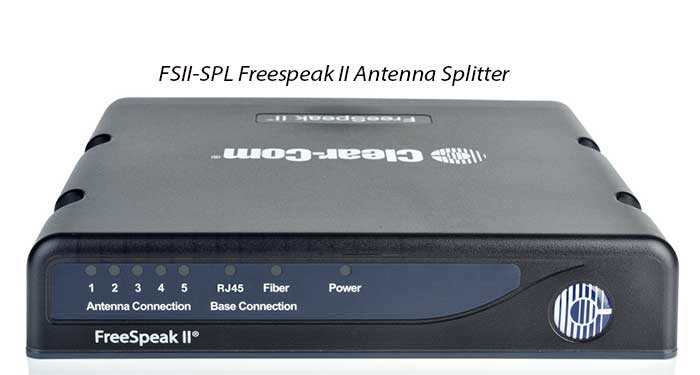

ANTENNA SPLITTER:
  • No. of Antennas: 5
  • No. of Splitters Per Base: 2
  • Connection Between Base and Splitter: CAT-5 or better cable with RJ-45
  • Connection Between Splitter and Antennas: CAT-5 or better cable with RJ-45
  • Powering of Splitter: Locally powered via supplied external power supply
  • Weight: 16 oz (0.45 kg)

Freespeak II System Quick Start Guide
