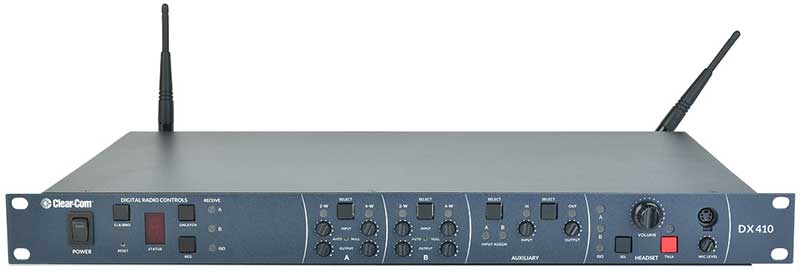

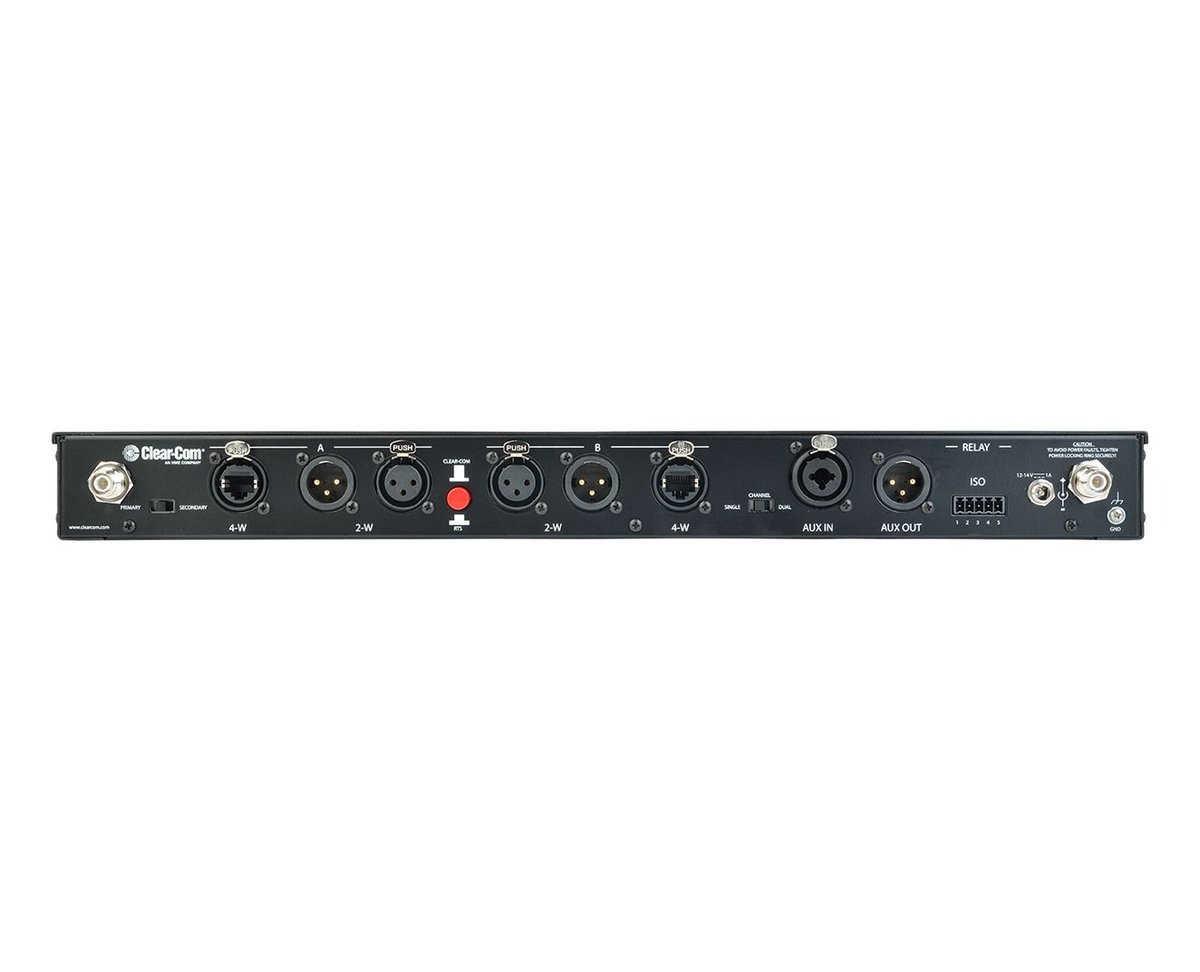

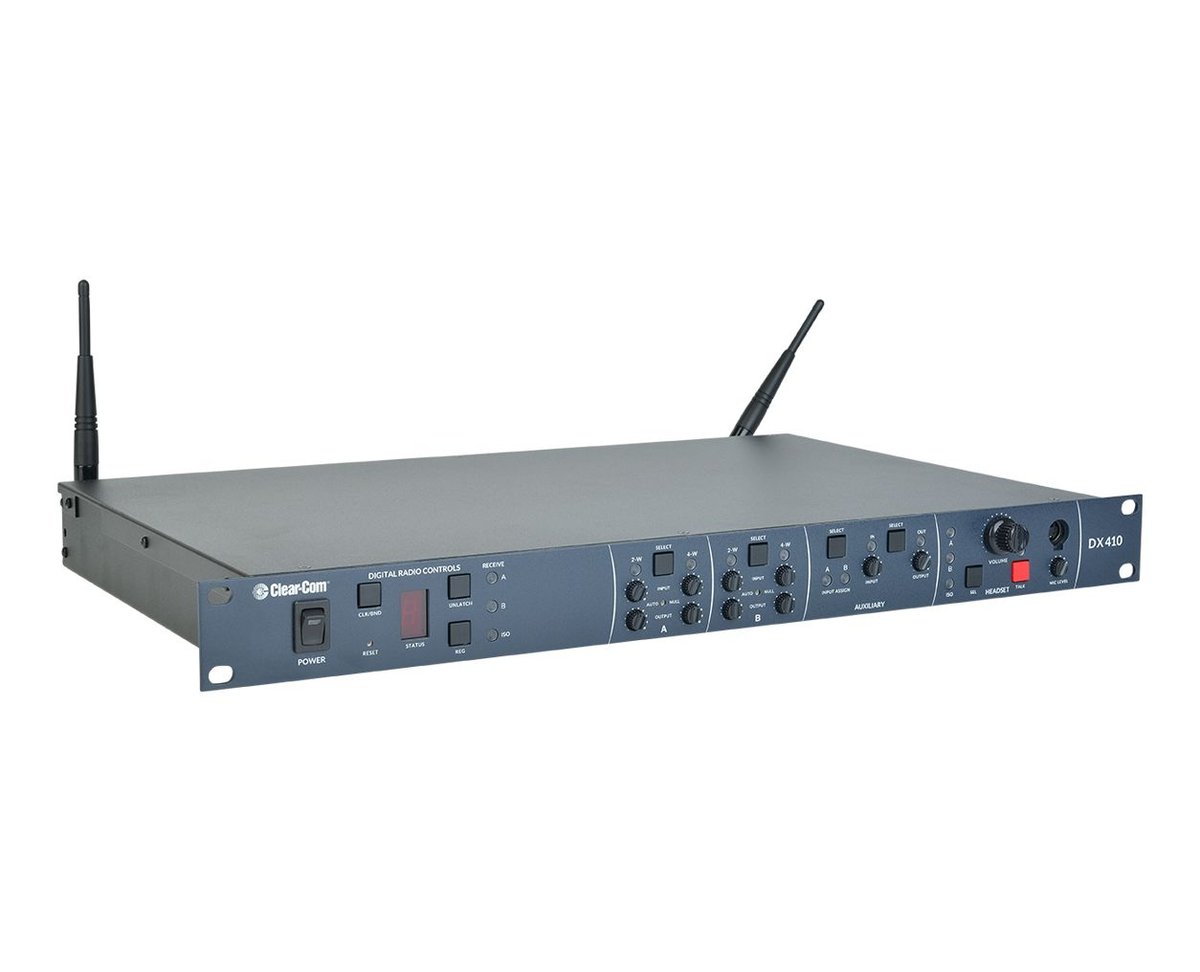

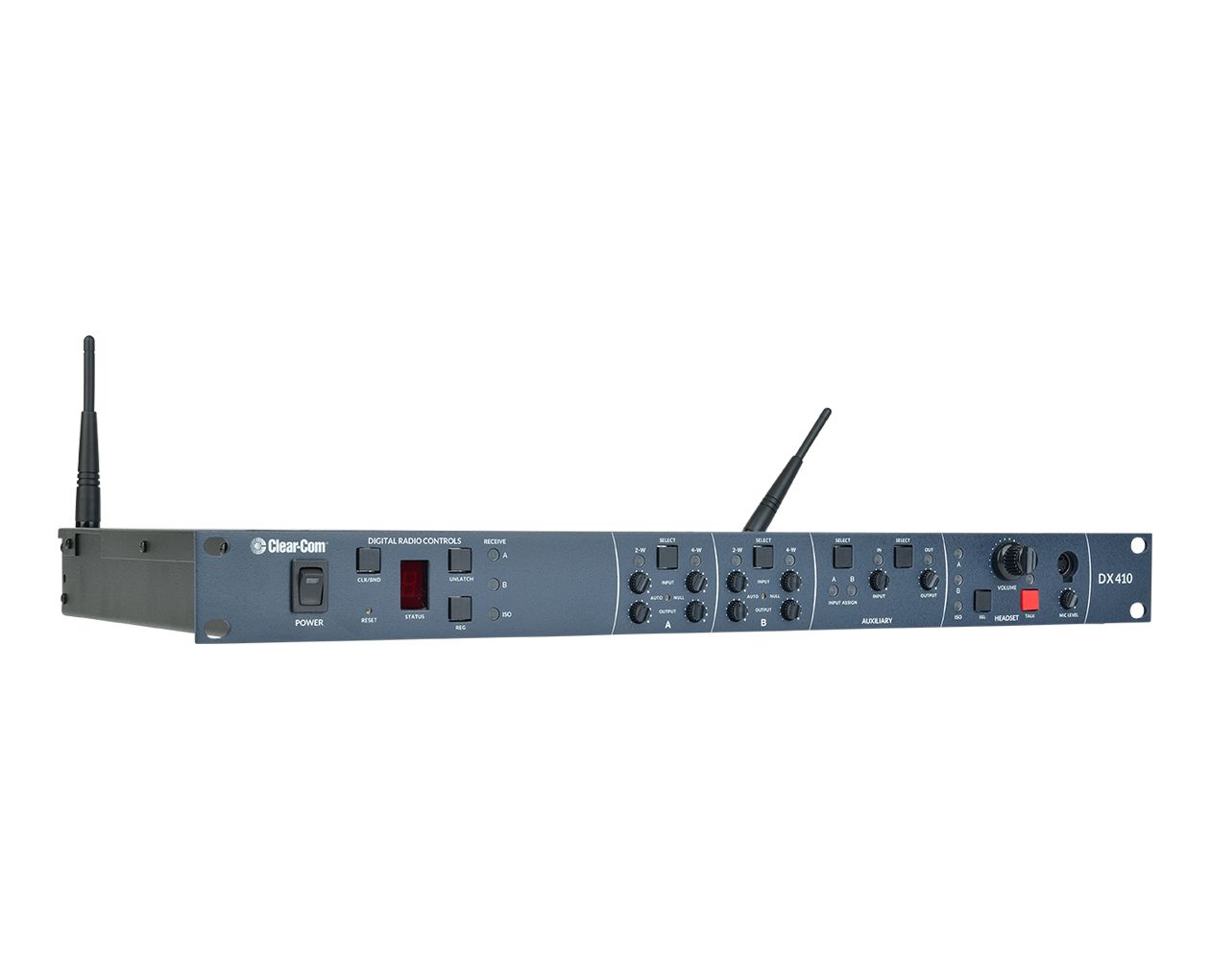

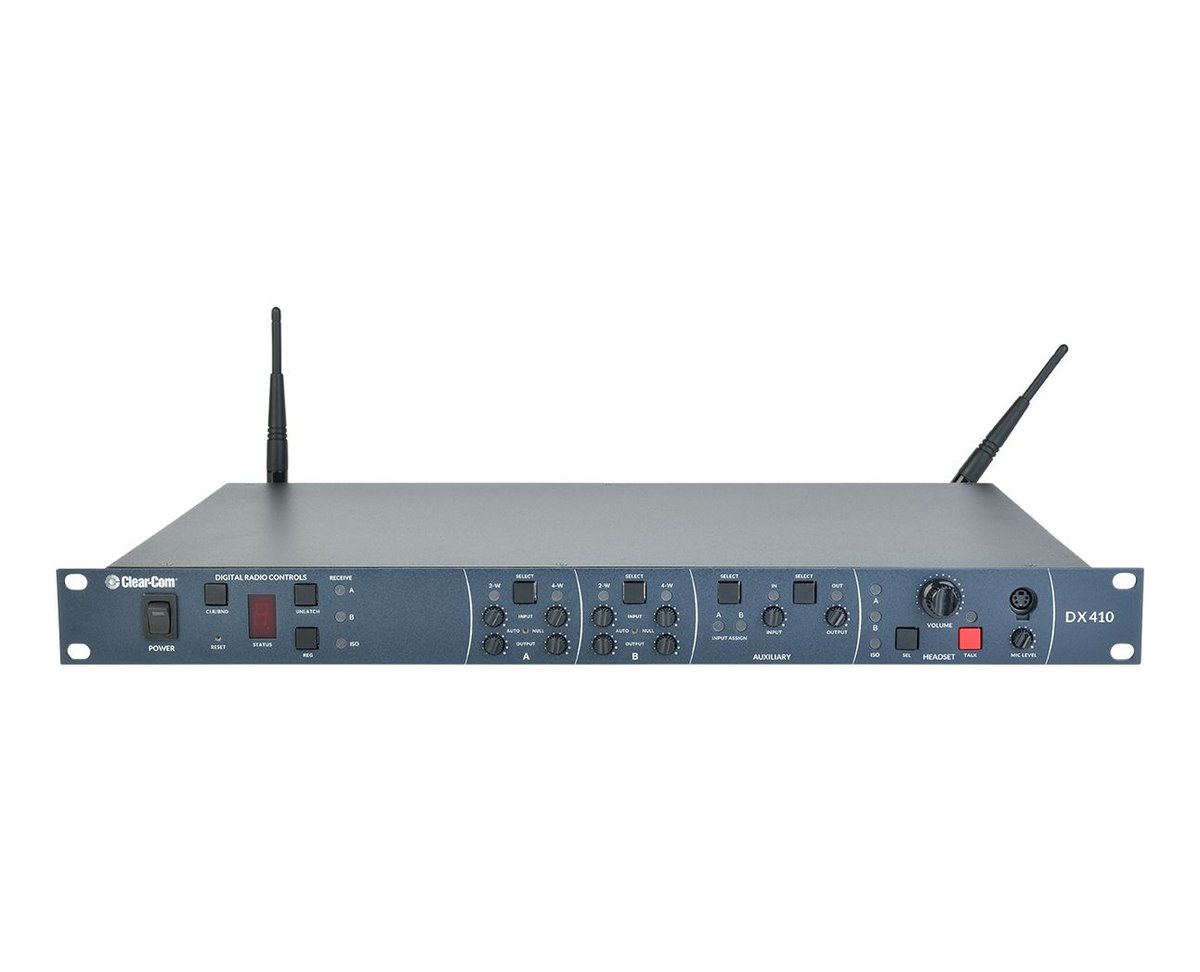

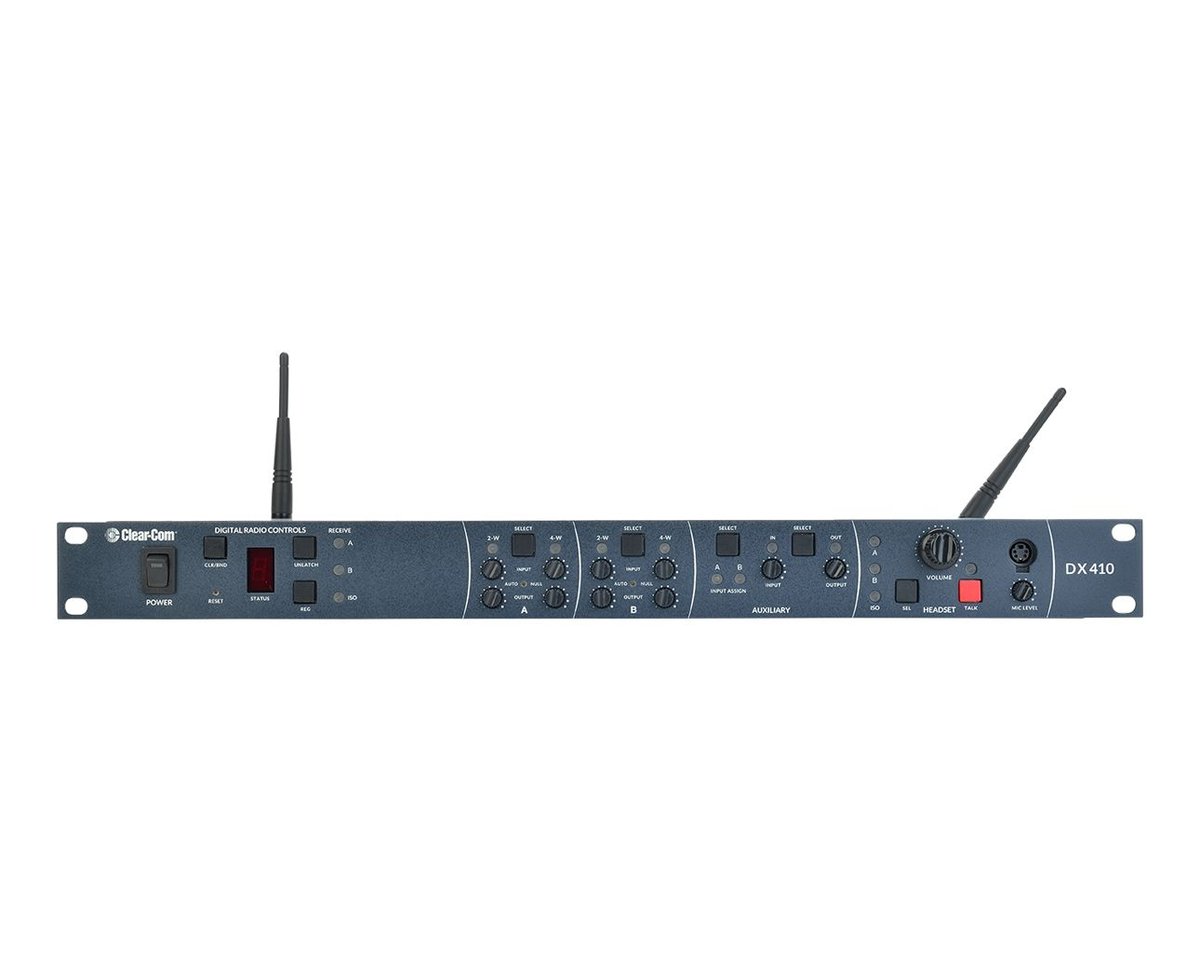

Clear-Com BS410 Base Station

The BS410 is the base station for the DX410 wireless system, supporting up to 15 registered BP410 beltpacks and/or WH410 all-in-one wireless headsets. In a single-channel operation, any four beltpack users can engage in simultaneous, full-duplex (talk-listen) communication, while only three users may be in full-duplex mode in a dual-channel operation. Other users will be in half-duplex (listen only) mode.

The system operates in the 2.4GHz frequency band and features high quality 7kHz wideband audio. The BS410 allows the option for audio bridging by combining 2-wire and 4-wire audio together on A or B channels.

Two-wire auto-nulling enables fast and accurate integration with Clear-Com and RTS wired partyline systems.

BS410 Base Station Highlights:

• Two-channels
• 7kHz wideband audio
• 2-wire and 4-wire bridging
• 2-wire auto-nulling
• Lost packet concealment
• Upgraded radio
• Supports up to 15 beltpacks and/or wireless headsets

BS410 Spec Sheet
DX410 User Manual
