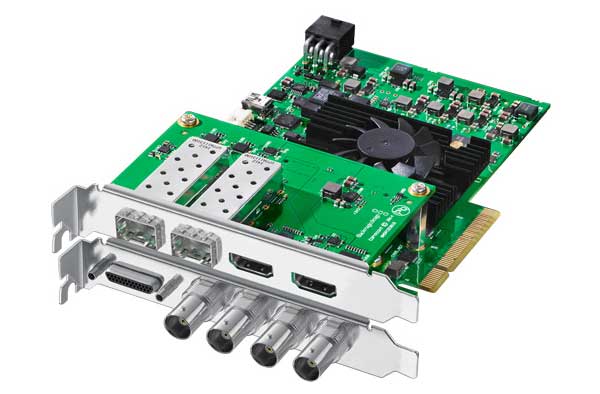

Blackmagic DeckLink 4K Extreme 12G

Blackmagic Decklink 4K Extreme 12G
Capture/Playback Card

• SDI Video Inputs - 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
• SDI Video Outputs - 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
• Analog Video Inputs - 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
• Analog Video Outputs - 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
• HDMI Video Inputs - HDMI type A connector with support for 2160p60.
• HDMI Video Outputs - HDMI type A connector with support for 2160p60.
• Computer Interface - PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.
• Part # BMD-BDLKHDEXTR4K12G
