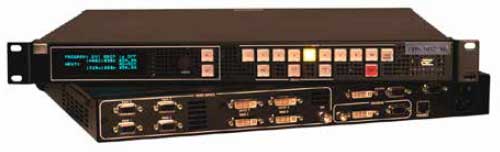

Barco PDS Series - Digital Switchers

Description

The PDS series is designed to meet today's requirements for a high quality, easy to use and fast seamless switcher with more digital inputs at an affordable price. The PDS is offered in three models: PDS701 3G, PDS901 3G and PDS902 3G.

Thanks to its straight-forward setup and operation the PDS is a perfect fit for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities, and fixed installations.

Three models
The PDS901 3G and PDS902 3G models feature four DVII inputs with full HDCP 1.0 support, whereas the PDS701 3G features two DVII inputs. All models include one 3G/HD/SD SDI and four universal analog inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to three images that can be used as a LOGO source during the presentation. Built-in test patterns are also provided.

Program output
All models offer simultaneous program output via the DVI and analog connectors. The PDS902 3G and PDS901 3G models also include an SDI output supporting SD/HD/3G rates and BarcoLink for easy connection to your Barco projectors. In addition, the PDS902 3G offers a preview output that can be set at different resolution than the program output. Users have the option of displaying one of three signals on the preview output: program, preview or test pattern.
