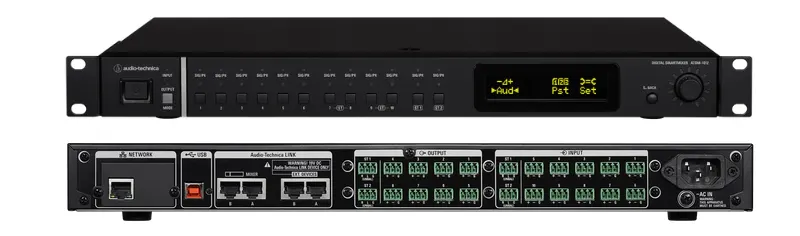

Audio Technica ATDM-1012 Digital SmartMixer

The ATDM-1012 Digital SmartMixer is a flexible and easy-to-use solution for a wide variety of installed audio applications where mix-minus operation or audio pickup from specific zones within a space is required. Its powerful feature set makes it ideal for hospitality, corporate or demanding courtroom settings, and many more.

Features:

• High-quality mic/line inputs with discrete amplifiers and remotely controllable mic preamps
• MIC/LINE input 1-10: Euroblock 3 pin, ST input 1/2: Euroblock 3 pin, Output 1-8, ST output 1/2: Euroblock 3 pin
• USB Type-B (Device): Stereo input x 1 ch, Stereo output x 1 ch (24-bit)
• Up to two ES954 Hanging Microphone Arrays (sold separately) can be integrated with the mixer.
• Full-matrix mixer with flexible input/output assignments.
• Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC) for use with up to 10 mic inputs.
• Audio-Technica LINK support for cascading up to 8 ATDM devices.
• Dante-compatible model (ATDM-1012DAN) available.
• 1U design is 19" rack compatible

ATDM-1012 User Manual
