Acebil P-22MX Professional Tripod System

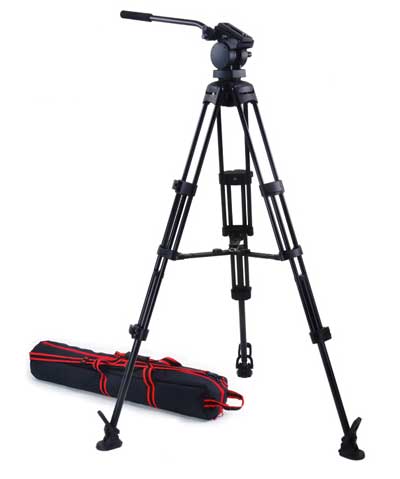

The P-22MX Professional Tripod System includes a 75mm H20 fluid head, T752 aluminum tripod, MS-5 mid spreader, and an S-52 carry case. The tripod features a two stage design and aluminum construction that supports loads up to 17.6 lbs. It provides a height range from 31.9" - 65" and comes equipped with a sliding quick-release plate and pan bar.

• Payload 8kg / 17.6lb
• CB Payload 6kg / 13.2lb
• Counter Balance Fixed Setting
• Pan Drag Fixed Setting
• Tilt Drag Fixed Setting
• Tilt Angle +90° / -80°
• LED Bubble Level Illumination No
• Camera Plate Slide Plate
• Plate Attachment 1/4-20" Screw
• Spare Camera Screw 3/8" Screw w/ Video Pin
• Slide Range +35 / -35 mm
• Weight 5.9kg / 13lb
• Height 81-165cm / 31.9"-65"
• Ball Diameter 75mm
• Leg Section 2 Stage
